| Clean room mobile gantry crane small electric gantry
The clean room mobile gantry crane small electric gantry is a clean light crane equipment that can be moved back and forth in the clean room.
Mar 23, 2022

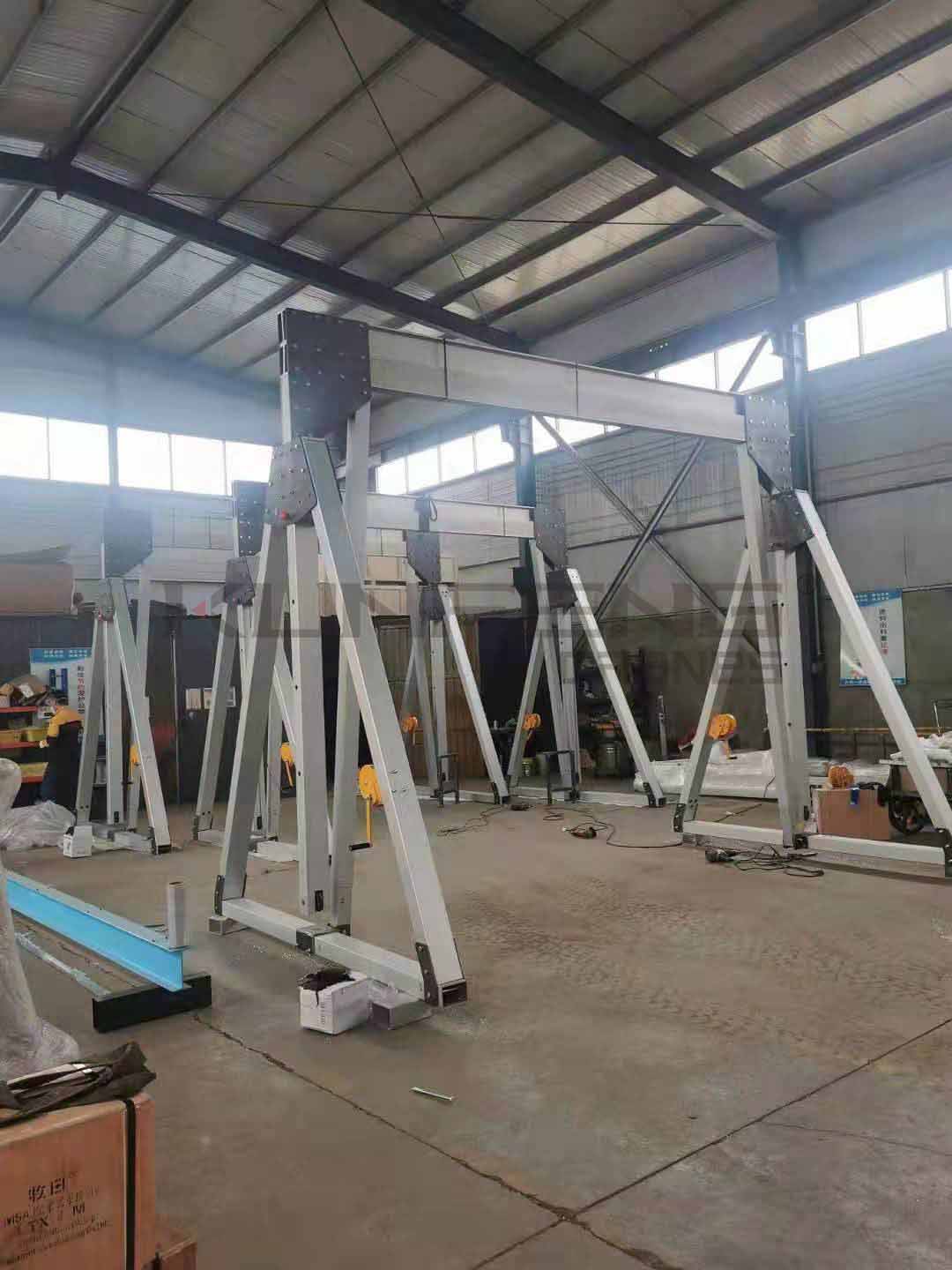

The clean room mobile gantry crane small electric gantry is a clean light crane equipment that can be moved back and forth in the clean room, and it is convenient to move and lift materials. The small clean gantry is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in clean rooms. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers.
The clean gantry is a bridge-type crane in which the bridge is supported on the ground track by the outriggers on both sides. Structurally, it consists of a gantry, a cart running mechanism, a hoisting trolley and electrical parts. Some gantry cranes only have outriggers on one side, and the other side is supported on the workshop or trestle, which is called a semi-gantry crane. The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. The clean electric mobile gantry can also use a lifting trolley with a boom, and the crane's operating range can be expanded through the pitch and rotation of the boom.
