Large Workpiece Turning Device for Crane

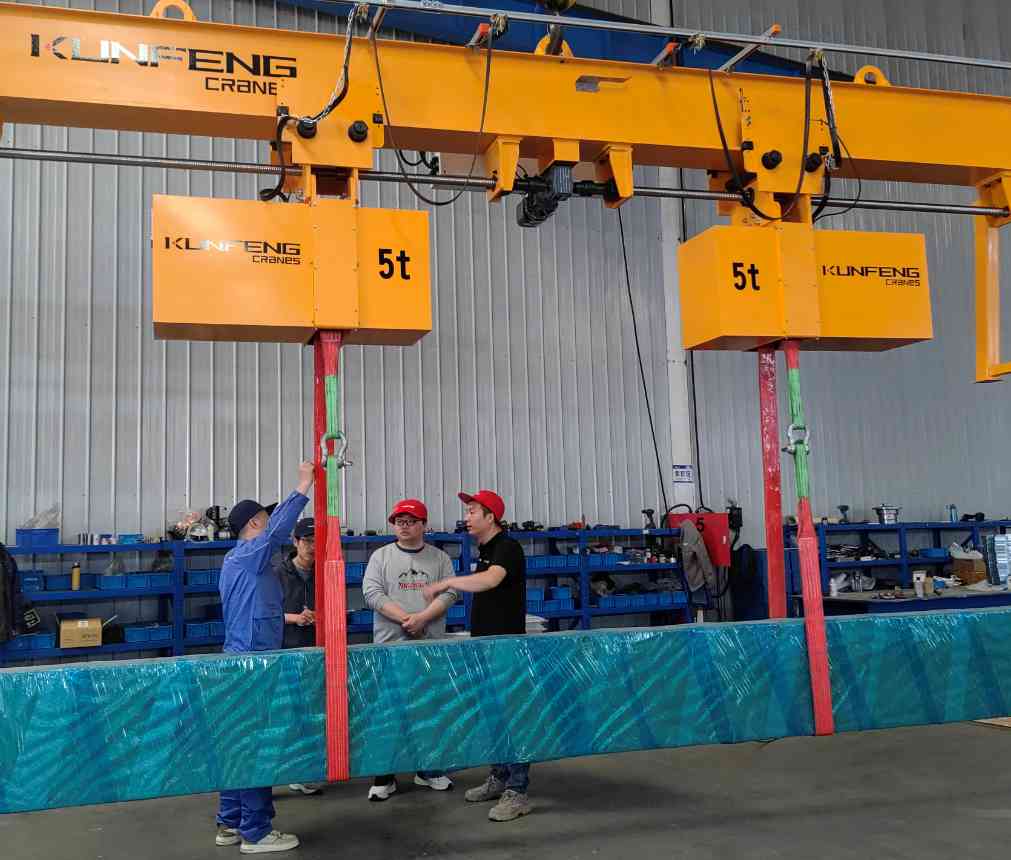

This large workpiece turning device for crane works in coordination with overhead cranes and gantry cranes. Adopting an electric drive system, it achieves controllable and precise rotation, so as to safely turn large or irregularly-shaped workpieces to the required angles for subsequent processing, assembly, inspection and handling operations.

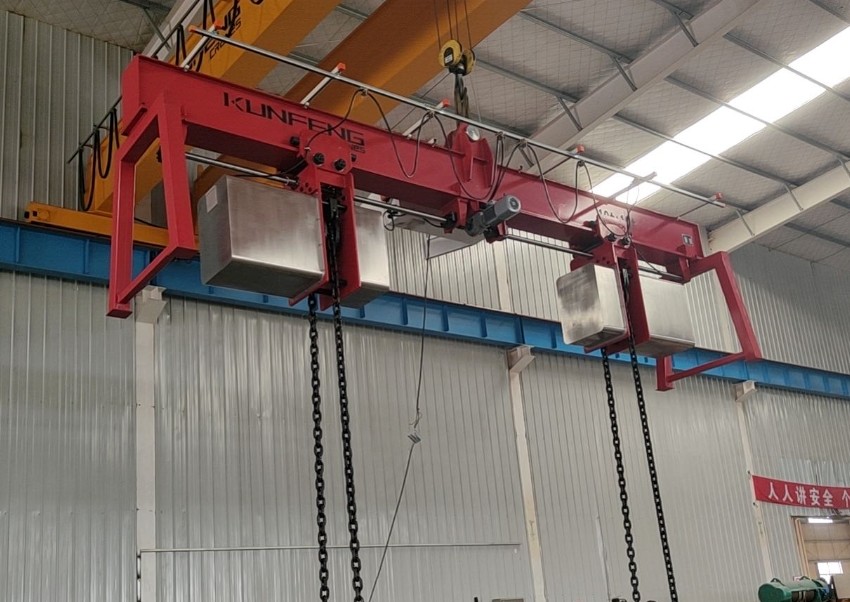

Chain Type Turning Device

This equipment is equipped with high strength steel chains (heat-treated with excellent wear resistance and fatigue resistance) and rigid transmission structures, with a maximum load capacity of 50 tons. It meets heavy duty operation requirements in foundries, steel plants, heavy machinery manufacturing plants and other industrial sites. The chain transmission system ensures stable, non-slip rotation of workpieces even under uneven load distribution. The chain load turning device is especially suitable for rough machining scenarios with low requirements for workpiece surface protection, such as the turnover of casting flasks and heavy steel components.

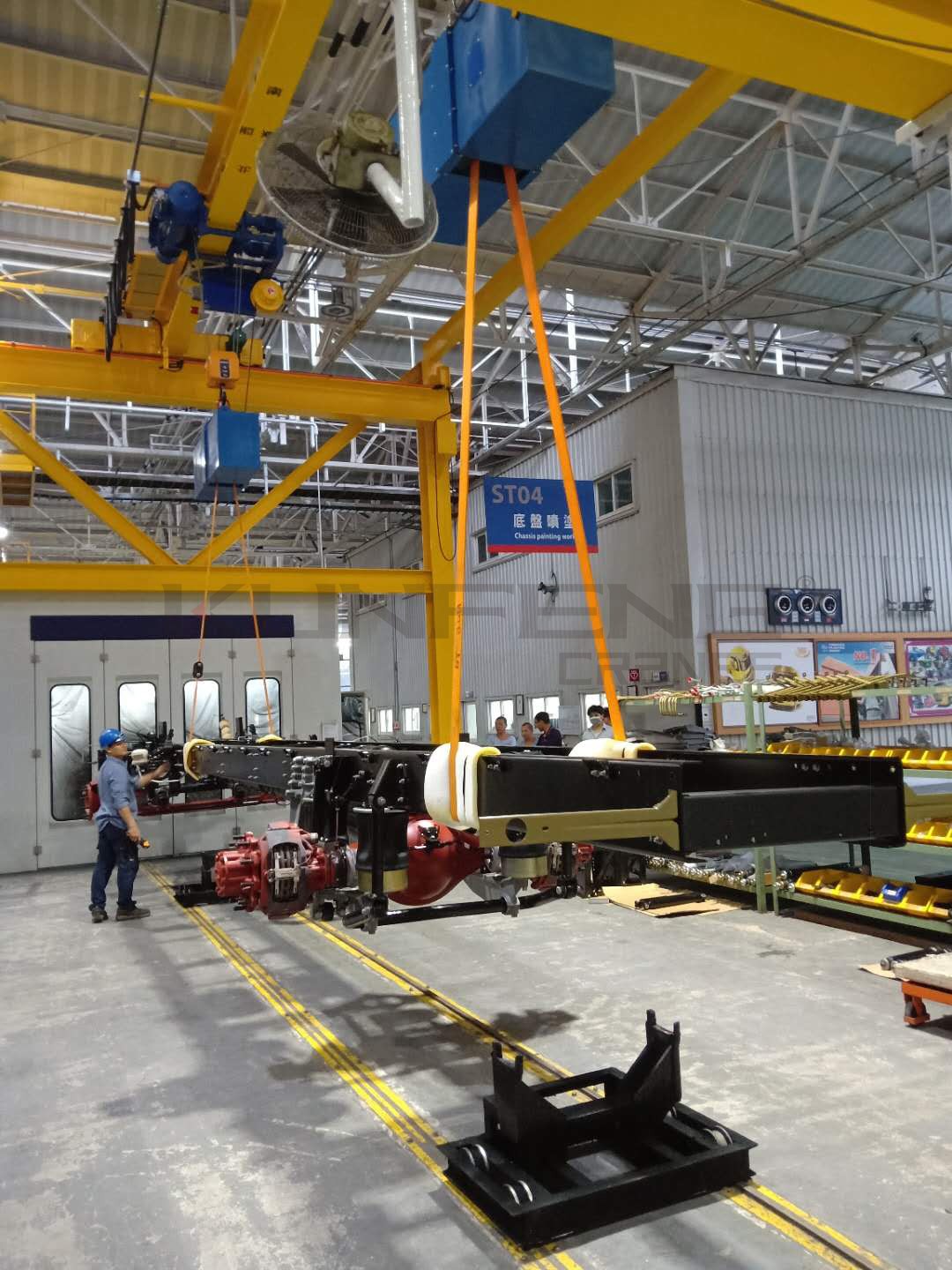

Belt Type Turning Device

Specially designed for workpieces with ultra-high surface precision requirements (such as wind turbine main shafts, automobile chassis and precision moulds), the belt type turning device adopts flexible and high-wear-resistance rubber or polyurethane belts to support workpieces. The soft belt surface effectively prevents scratches, dents and other damages on workpiece surfaces, eliminating the tedious process of laying additional protective cushions. It realizes stable and low noise rotation, and is generally fitted with adjustable belt spacing to adapt to workpieces of different sizes. It is widely applied in automobile manufacturing, wind power industry and precision engineering fields.

Technical Features and Advantages of Load Turning Devices

• Supports stable 90°, 180° or 360° rotation to realize precise positioning of various workpieces.

• Optional belt slings or chain slings according to actual production conditions.

• Equipped with overload protection, anti-slip system and locking mechanism to prevent operational accidents.

• Reduces manual labor, shortens operation cycles and improves production efficiency.

• Customizable for diversified workpieces, including steel structures, moulds, automobile chassis and irregular components.

Industrial Applications

Steel structure manufacturing: Rotation of steel beams, steel plates and welded assemblies

Automobile manufacturing: Handling of chassis and frame components

Shipbuilding and heavy equipment: Positioning of large structural parts

Mould industry: Turnover of heavy moulds for machining and maintenance

Energy equipment: Handling of turbines, generators and large components

If you are looking for a large workpiece turning device matching your production requirements, please contact us immediately for a quotation. Our experienced engineering team is ready to provide professional technical guidance and customized solutions for you.
