Suspended Load Turning Device for Irregular Objects and Large Workpieces

The suspended turning device is a special hoisting equipment installed on overhead crane system. It realizes safe lifting, precise turning and angle control of irregular workpieces and heavy loads. Driven by an electric drive structure, the device enables stable 0° - 360° aerial rotation of workpieces. It is widely applied in industries including steel structure fabrication, mold processing, shipbuilding and heavy equipment manufacturing.

Core Structure & Working Principle

Load lifting beam: Bears and secures workpieces, supporting multi-point hoisting.

Rotary drive system: Comprises motors and reducers to provide stable power output for overturning operations.

Control system: Compatible with handle control and wireless remote control.

Safety locking device: Prevents accidental sliding and uncontrolled overturning.

Connection components: Connects with crane hooks or hoists.

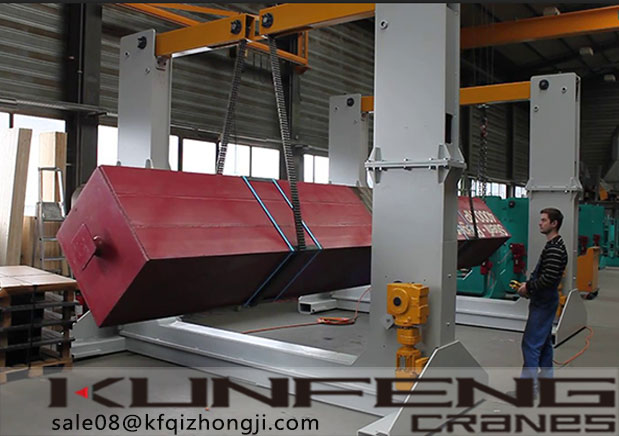

The suspended turning device lifts workpieces into the air via the crane. Subsequently, the drive system propels the lifting beam to rotate, completing controlled workpiece overturning. The entire process features soft start, soft stop and accurate positioning to ensure stable and safe operation.

Product Advantages of Suspended Turning Device

• Adopts multi-point hoisting and adjustable lifting slings for irregular objects to achieve stable clamping, avoiding load eccentricity and sliding.

• Equipped with precision reduction system and variable frequency control to realize low-speed and steady turning, preventing structural impact and damage to workpieces.

• Minimizes manual intervention and keeps personnel away from heavy load turning areas, greatly reducing safety hazard risks.

• Features automatic balance adjustment to prevent workpiece slipping.

• Supports customized design according to parameters such as load capacity, workpiece size and turning angle to adapt to diverse working conditions.

Selection & Operation Recommendations

• Workpiece weight, dimension and center of gravity position

• Turning frequency and working environment

• Requirement for automatic control functions

• Compatibility with existing hoisting systems

As a professional manufacturer of hoisting equipment, KUNFENG is committed to providing customers with safe, efficient and reliable material handling solutions. Boasting high load capacity, stable turning performance and flexible customization, our load turning devices have been widely adopted in various industrial fields.
