DESCRIPTION:
Designed specifically for chip manufacturing plants and laboratories, the cleanroom cranes feature ultra-low particle emissions, precise positioning and corrosion-resistant structures, ensuring safe and contamination-free wafer handling.
CATEGORY:
CREATED:
Jul 01, 2025

The chip workshop clean room crane is a high-end lifting equipment designed for semiconductor manufacturing environments, aiming to meet multiple operational needs such as wafer handling, equipment maintenance and material transfer. The crane uses low-particle release materials and a closed dust-proof structure, combined with a precise motion control system, to ensure safe, efficient and precise lifting operations in ISO 5 and above clean rooms.

Chip workshop cleanroom crane

Main features of clean room crane

  ● The body and key components are made of carbon steel or stainless steel, and the surface is anodized or sprayed to minimize particle shedding.

  ● Integrated servo drive and laser ranging, the horizontal and vertical positioning accuracy can reach ±1 mm, meeting the wafer-level operation requirements.

  ● All lubrication points are sealed and oil-free lubricants are selected; the suspension components are equipped with dust covers to effectively block external pollution.

  ● Support PLC control system, which can realize automatic handling, trajectory programming and remote monitoring.

  ● Configured with multi-level limit switches, overload protection and emergency braking systems, multiple guarantees for equipment and personnel safety.


Typical application scenarios

  ● Wafer handling: Accurately transfer silicon wafers and wafer frames between different stations.

  ● Equipment maintenance: Cooperate with the daily inspection and replacement of clean room equipment.

  ● Material supply: Load consumables and tools to production lines such as exposure machines and etching equipment.

  ● Automation docking: Cooperate with AGV, conveyor lines, robots and other systems to achieve flexible production.

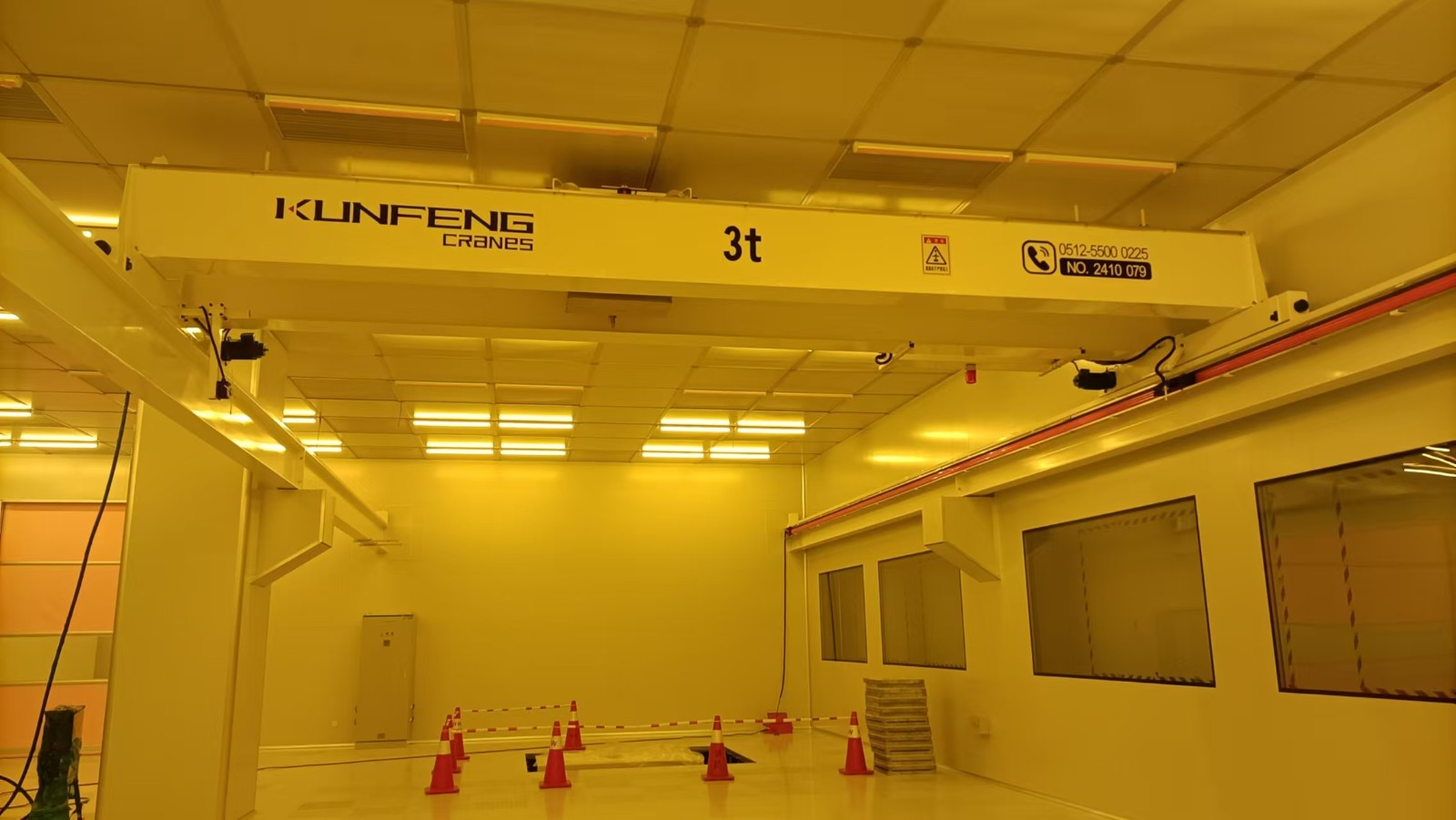

3t cleanroom overhead crane

The clean room crane in the chip workshop fully integrates low-particle material technology, precision motion control and intelligent management, providing a set of "clean, efficient and safe" handling solutions for semiconductor manufacturing companies. Welcome to contact us for detailed design solutions and customized services!
