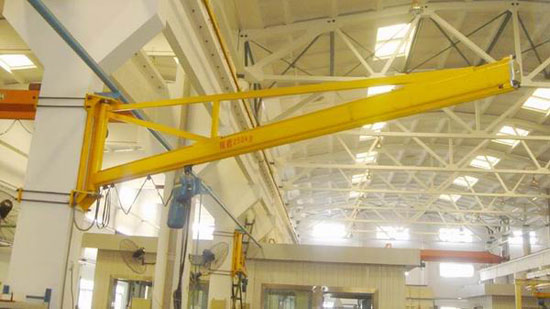

Wall-mounted jib crane systems can be used in individual bays, along structurally adequate walls or building support columns, or as a supplement to an existing monorail or overhead bridge crane. The main advantage of using a wall-mounted system is the space-savings that it offers. They don’t require any type of floor or foundation support, and they can also be installed very close to the underside of the lowest ceiling obstruction, providing maximum clearance both under and above the boom.

These systems can be designed to swing around obstacles, under obstructions, or fold out of the way of overhead cranes to ensure no interruption of production.
Wall or column-mounted jib cranes can accommodate:
Spans ranging from 8-30’
Capacities up to 5 tons
180°-200° rotation
Wall-mounted jib cranes can be designed to mount to a wall or building support column in two different ways:
Cantilever: Wall-mounted cantilever jib cranes offer the greatest amount of clearance, above and below the boom, and have a full-cantilever design
Tie-Rod Supported: This is the most economical means of providing hoist coverage along walls or building columns. A wall bracket and single tie-rod supports the boom to allow the hoist full travel along the length of the beam.
While these types of jib systems are among the most economical in price and design, the major disadvantage of using a wall-mounted or column-mounted jib crane is that the design does not allow for full 360° of rotation. They also require a column or support capable of withstanding the loads, which typically requires a structural engineering survey and approval prior to installation.
