Crane Load Rotators for Automobile Production Line

In modern automobile manufacturing, automation, flexibility and high precision have become key requirements for production lines. KUNFENG load rotators can be used in conjunction with overhead cranes to rotate workpieces by 0 - 360 degrees in mid-air. Suitable for stamping, welding, general assembly and painting processes, they significantly improve production efficiency and operational safety.

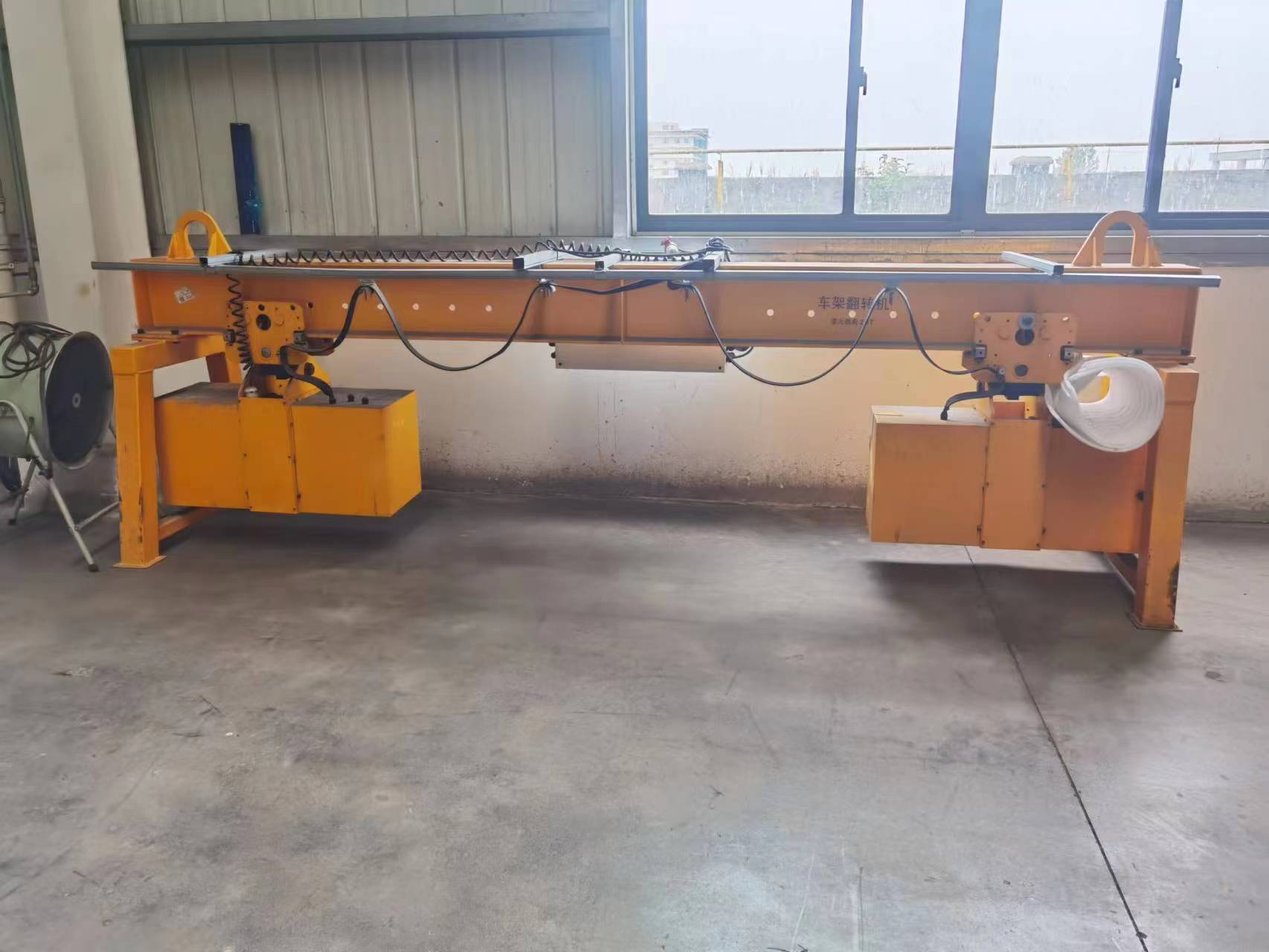

The crane load rotator adopts electromechanical integrated design. It carries the workpiece via the turning belt sling and is lifted to the specified height by the lifting equipment. When the motor starts, it drives the turning shaft to rotate through a reducer and transmission mechanism, realizing the attitude conversion of the workpiece from horizontal to vertical or vice versa. The system integrates PLC control and sensor monitoring, enabling angle control, speed adjustment and multi-stage variable-frequency operation to ensure a stable and safe turning process.

Technical Features of Crane Load Rotators

• Strong load capacity, suitable for workpiece turning from 1 ton to 50 tons.

• Stable structural design and precise turning function ensure safety and reliability.

• Adaptable to frames and chassis of various shapes and sizes, supporting multi-angle turning operations.

• Equipped with safety protection devices to ensure the safety of operators and equipment, effectively preventing accidents.

• Can be used with existing overhead cranes to reduce investment costs.

Applications in Automotive Production Lines

Stamping Production Lines: Used for turning and transferring automotive body panels and sheet metal parts to realize continuous stamping operations.

Welding & Assembly Lines: Enables turning of body structural parts and frames to facilitate robotic welding and manual assembly.

Painting Production Lines: Turns vehicle bodies or components to ensure uniform coating coverage and finish.

General Assembly & Inspection Stations: Used for attitude adjustment and maintenance of chassis, axles and other components.

If you are looking for high performance turning solutions for automotive manufacturing, please feel free to contact us for professional technical support and product quotations.
