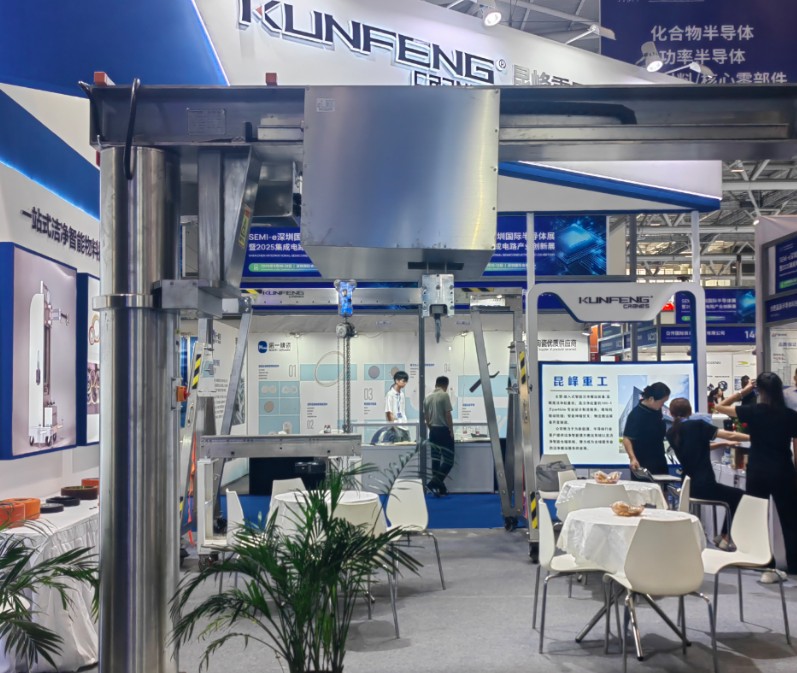

Cleanroom Grade Free Standing Jib Crane

The cleanroom free standing jib crane is material handling equipment specially designed for high cleanliness level environments. It features a low-dust emission structure and clean-grade lifting device, which can effectively reduce particle contamination. With free standing column installation that does not rely on the building structure, it has a small footprint and flexible layout. It enables precise lifting and smooth rotation within the jib range, making it suitable for efficient and safe material handling in cleanroom applications such as semiconductors, pharmaceuticals, electronics manufacturing, and food processing.

Structure of Cleanroom Column Jib Crane

• Column: The main structural part that supports the entire jib and lifting machinery, column require special treatment to ensure their surfaces are smooth, easy to clean and do not release particles or hazardous materials into the cleanroom environment.

• Jib arm: The lateral extension of the crane, used to support the lifting machinery and move in the horizontal direction, the jib arm is typically made of stainless steel or other corrosion-resistant materials to ensure it does not generate contaminants.

• Lifting machinery: Used for hoisting and transporting workpieces, usually including lifting hoist and trolley, the outer surface and internal structure of the lifting machinery require special treatment to ensure that particles or hazardous materials are not released into the cleanroom environment.

• Electrical control system: Used to control the operation, movement and hoisting operations of the crane, the electrical control system needs to meet the requirements of the clean room environment to ensure that it is stable and reliable and does not pollute the environment.

• Safety protection devices: Equipped with various safety protection devices to ensure the safety of lifting operations.

Design Features of Cleanroom Jib Crane

• Feature free standing design that does not rely on building support structures, allowing for independent installation and movement.

• The rotating arm structure enables 360° rotation for a wider working coverage.

• Constructed of clean materials such as stainless steel or other anti-corrosion materials.

• Equipped with precision control system, it allows for accurate control and positioning of the crane.

• Interlock with other equipment and systems inside the cleanroom to achieve higher safety and automation.

If you are looking for cleanroom jib crane, please feel free to contact us for a free customized solution and quotation!

Frequently Asked Questions

Q: What cleanroom classification levels can your cleanroom jib cranes meet?

A: Our cleanroom jib cranes can be designed to meet customer requirements, generally complying with ISO 5 to ISO 8 cleanroom standards. We use low-dust-emission materials and special surface treatment processes to effectively reduce the risk of contamination.

Q: What are the advantages of the free standing structure compared to other types?

A: The free standing jib crane does not rely on the factory building structure for installation. It features an independent column support, offering flexible installation and strong adaptability.

Q: Do your cleanroom jib cranes support customized design?

A: Yes. We provide customized solutions based on workshop operating conditions, including lifting capacity, jib length, lifting height, rotation angle and cleanroom classification levels, to meet the layout requirements of different cleanrooms.

Q: Will the jib crane cause contamination during operation?

A: No. The equipment is made of stainless steel or aluminum alloy, key components are treated with dust-proof sealing. It operates smoothly with low friction and low particle emission, complying with cleanroom requirements.
