Workshop Aluminum Adjustable Height Gantry Crane

In modern manufacturing and assembly workshops, material handling equipment must not only have high load-bearing capacity but also ensure flexibility and convenience. Aluminum adjustable height gantry crane is widely used in production workshops, maintenance areas, warehouses, logistics and clean environments due to their lightweight structure, flexible adjustment and modular installation.

What is an Aluminum Adjustable Height Gantry Crane

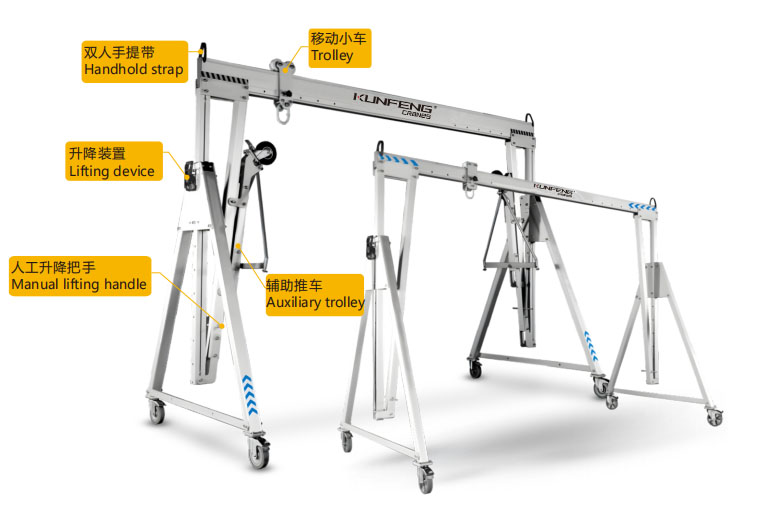

Aluminum adjustable height gantry crane is a light lifting device that uses high strength aluminum alloy as the main load-bearing material and adopts a gantry-shaped frame structure. It features height adjustability, disassembly and mobility. It is usually equipped with a manual or electric chain hoist, suitable for material lifting from 150 kg to 2000 kg.

Differences from Traditional Steel Gantry Cranes

• Self-weight reduced by about 40%~60%

• Strong corrosion resistance, suitable for cleanrooms or outdoor environments

• No large installation equipment required; assembly and movement can be completed by one person

Advantages of Portable Aluminum Gantry Crane

• Height can be quickly adjusted via preset holes on the columns with high-strength bolts, flexibly adapting to different working conditions to meet various equipment installation and material handling needs.

• The total weight is usually only half that of steel gantry cranes of the same specification. Equipped with braked casters, it can be pushed and positioned by one person.

• Modular design allows fast disassembly and assembly without complicated tools, facilitating transportation and on-site installation.

• Can be equipped with electric chain hoists, manual hoists or fiber rope hoists. Customized solutions are available according to different load and cleanliness requirements.

Buying Guide: How to Choose the Right Aluminum Gantry Crane

• Confirm the lifting weight and safety factor

• Measure the working space dimensions (height and span limits)

• Evaluate the frequency of movement

• Pay attention to material and workmanship

• Select the type of lifting mechanism

Maintenance and Safe Operation Tips for Portable Aluminum Gantry Crane

• Check bolt tightness and caster wear monthly

• Do not use for side pulling, shock loads or overloading

• Ensure the ground is flat and solid before use

• Avoid long-term outdoor placement to prevent salt spray corrosion

KUNFENG CRANES is a professional manufacturer with ISO certification. For specific model quotations or customized solutions for aluminum gantry cranes, please contact us anytime via email: sale@kfqizhongji.com for free technical consultation.

FAQ

Q: How is the height of the aluminum gantry crane adjusted?

A: It adopts step adjustment or pin-type adjustment structure to realize overall lifting by adjusting the height of the support legs.

Q: What are the advantages of aluminum gantry cranes compared with steel ones?

A: Lighter self-weight for easier movement and installation; rust-resistant with low maintenance cost.

Q: Can it be used in cleanrooms or dust-free workshops?

A: Yes. Aluminum alloy has excellent corrosion resistance and low pollution characteristics, making it ideal for cleanrooms, pharmaceuticals, electronics and other high-environment-requirement industries.

Q: What about the service life of aluminum gantry cranes?

A: With proper use and regular maintenance, aluminum gantry cranes provide a long and stable service life.
