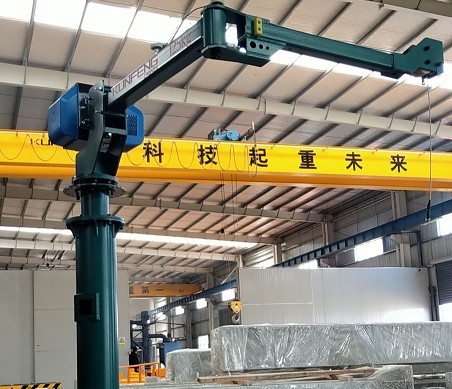

Column-mounted Double Arm Jib Crane

In modern industrial production and assembly workshops, efficient, flexible and safe material lifting equipment can significantly improve work efficiency and space utilization. KUNFENG column-mounted double arm jib crane consists of a solid column, double rotating boom, slewing mechanism, counterweight system and optional manual or electric hoist. The two jibs can rotate independently and without interfering with each other, and can cover two working areas at the same time or cooperate to complete the smooth lifting of workpieces.

Core features of double arm jib crane

  ● The two arms are based on the same column and rotate separately through a precision graded slewing mechanism, which can achieve independent or unidirectional movement within ±180°, taking into account multi-station feeding and heavy-load collaborative flipping.

  ● The column height and under-arm clearance can be flexibly adjusted to easily adapt to different clearances and operating radiuses in the workshop.

  ● The column and boom are made of high-strength steel or aluminum alloy profiles, and the joints are equipped with high-load slewing bearings and sealed lubrication systems to ensure smooth rotation, no shaking and low noise.

  ● It can be equipped with electric chain hoist or hand chain hoist, with independent hanging points for both arms, and the hoisting and hanging position can be positioned arbitrarily with the rotation of the arm.

  ● It is equipped with overload limiter, high and low limit, emergency stop switch and slewing travel block as standard, and anti-collision protection cover is installed at the arm end.

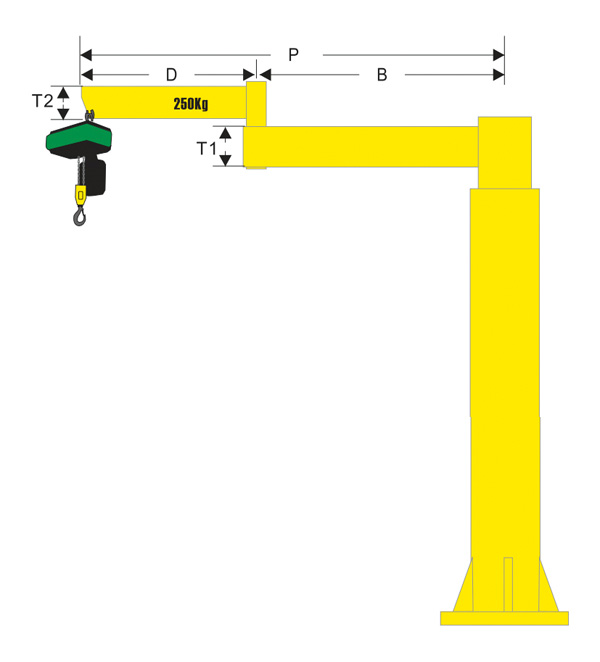

Main technical parameters

After-sales and customized services

  ● Solution design: Combine the workshop layout and operation process to provide the optimal arm layout and lifting solution.

  ● Fast delivery: factory pre-installation and on-site fast assembly, with a delivery cycle of 3-4 weeks.

  ● Installation and commissioning: Professional team will guide installation, calibration and acceptance on-site to ensure that the equipment is immediately put into efficient operation.

  ● Training and maintenance: Provide operation training, maintenance manuals and 24-hour remote support, and optional regular maintenance plan.

Column-mounted double arm jib crane has become the only choice for efficient lifting in multiple scenarios such as assembly, maintenance, and sorting with its excellent dual-station collaboration capabilities, flexible modular customization and all-round safety protection. Welcome to contact us to obtain exclusive solutions and make an appointment to visit the factory site!
