1 Ton Stainless Steel Free Standing Belt Hoist Jib Crane

The stainless steel free standing jib crane is a material handling solution installed on the floor without the need for support from the building structure. The entire unit is precisely manufactured from high quality 304 stainless steel, offering excellent corrosion resistance and smooth, easy-to-clean surface, fully compliant with the hygiene standards of industries such as food processing, pharmaceuticals and semiconductors. It is equipped with a cleanroom grade belt hoist that generates extremely low particle emissions during operation, effectively maintaining air cleanliness in controlled environments and making it ideal for precision material handling in dust-free workshops.

Main Structure and Working Principle

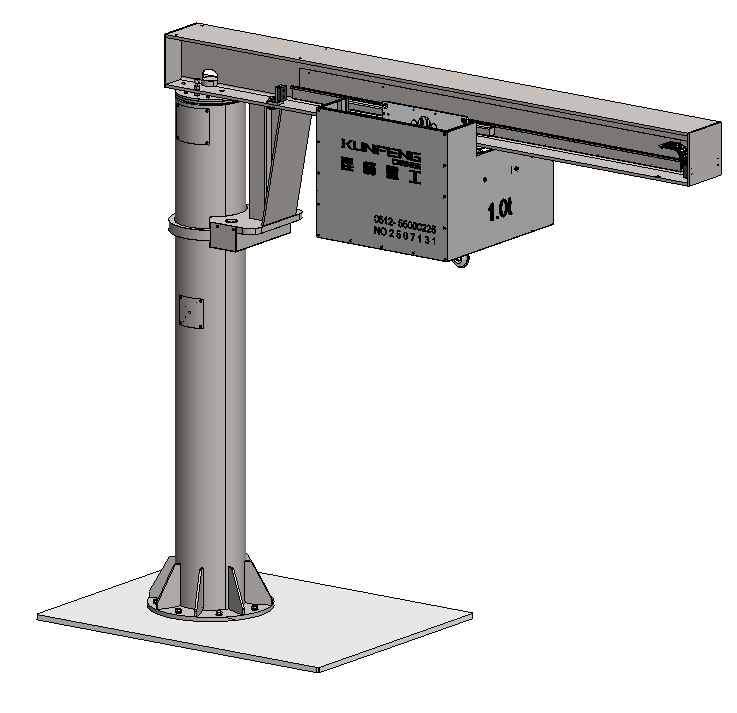

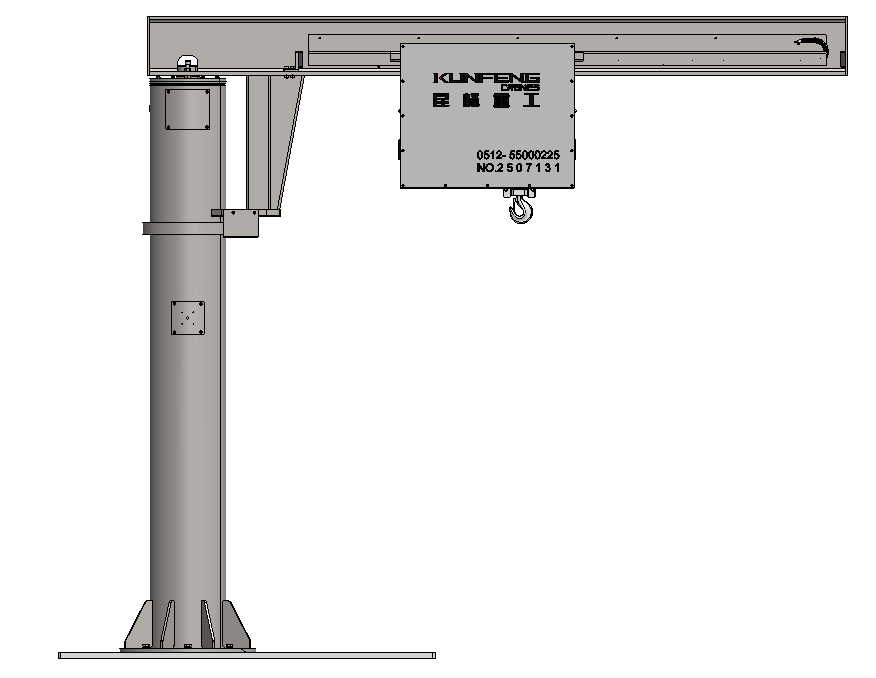

The equipment mainly consists of column, slewing mechanism, rotating arm, drive system and belt electric hoist. The column is made of circular stainless steel tubing and is anchored to the ground with pre-embedded anchor bolts, ensuring long-term structural stability during operation. The slewing mechanism is equipped with high precision bearing assembly, allowing the rotating arm to achieve 360° free rotation in the horizontal plane and cover a wide working area. The belt electric hoist suspended from the rotating arm, is responsible for vertical lifting and material handling. It utilizes a high strength polyurethane fiber belt, enabling smoother and more stable operation with significantly reduced noise, while also eliminating the risk of contamination caused by metal friction.

Product Advantages of Stainless Steel Belt Hoist Jib Crane

• The full stainless steel structure combined with a cleanroom grade belt hoist effectively minimizes particle generation and meets ISO cleanroom standards.

• Supports smooth 360° rotation, covering a wide working area, with easy operation and improved handling efficiency.

• The belt drive system ensures smoother lifting movement, reducing load swing and making it suitable for precision equipment handling.

• Ideal for high humidity and highly corrosive environments such as food processing workshops and pharmaceutical facilities, significantly extending service life.

• Customizable in terms of load capacity, jib length, lifting height and control system to suit various working conditions.

Product Technical Specifications (Customizable)

Application Industry Solutions

Food Processing Industry

The stainless steel belt hoist jib crane plays a critical role in material logistics such as raw material transfer, process handling and finished product loading/unloading. Its full stainless steel structure and smooth surface design ensure stable performance under frequent cleaning procedures such as high pressure washing, steam sterilization and chemical disinfection, without any risk of contamination transfer. Typical applications include dough bowl handling in baking workshops, raw material feeding in dairy production lines, slaughtering and cutting operations in meat processing plants, and chilled seafood lifting in aquatic product processing.

Pharmaceutical and Biotechnology Industry

The pharmaceutical industry requires extremely strict standards for cleanliness, traceability and validation documentation. The stainless steel jib crane must comply with ISO 14644 cleanroom standards and aseptic production regulations. Application scenarios include feeding and discharging of reactor vessels in API synthesis, formulation mixing in preparation workshops and loading/unloading of freeze-dried products.

Electronics and Semiconductor Manufacturing

It is used for handling high value materials such as silicon wafers, LCD panels and precision electronic components. The non-magnetic 304L stainless steel structure ensures no electromagnetic interference with sensitive electronic parts. The low-vibration belt drive system effectively protects fragile precision components from damage caused by impact loads.

Selection and Application Recommendations

• Actual load requirements and safety factor

• Working space dimensions and coverage area

• Cleanroom classification requirements (ISO Class 4 - 8)

• Whether explosion proof or enhanced corrosion resistant configurations are required

• Control method (manual or remote control)

Choosing a reliable and customizable stainless steel jib crane not only improves production efficiency but also ensures process compliance and product quality. If you are looking for a high performance lifting solution for cleanroom environments, the KUNFENG belt hoist jib crane is an ideal choice. Click here to get professional selection advice and product quotations, helping your production achieve efficient and safe operation.
