| 2 ton Cleanroom Electric Chain Hoist for Sale
| Want to know more about 2 ton Cleanroom Electric Chain Hoist for Sale?
Cleanrooms are now a common operating condition in industrial production and are widely used in emerging industries with high cleanliness requirements, such as machinery manufacturing, microelectronic
Cleanrooms are now a common operating condition in industrial production and are widely used in emerging industries with high cleanliness requirements, such as machinery manufacturing, microelectronics, medical equipment, food, biotechnology, laboratories, chemical industry, textile industry, atomic energy industry, and optical-magnetic product industry.

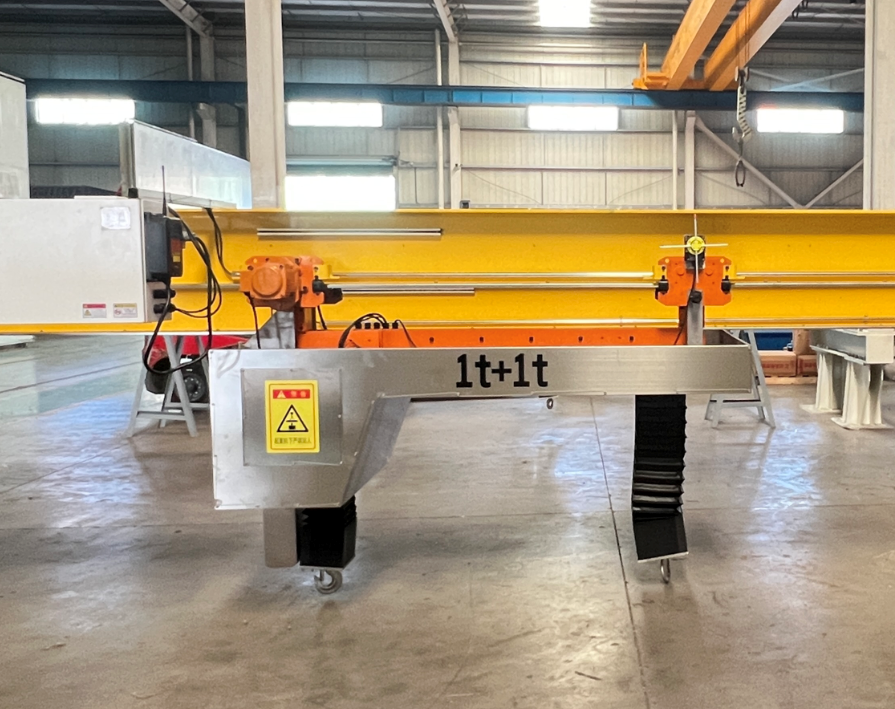

The basic structural system of the electric chain hoist for cleanroom use includes the main body of the electric hoist, a stainless steel integrated dust cover, an expandable accordion cover, chains, nylon wheels, stainless steel hooks, etc.
Cleanroom electric hoist's main body is housed inside a dust cover with nickel-plated surfaces. Chains connect the body to a hanging hook for lifting heavy objects and are protected by an expandable accordion cover. The electric chain hoist is designed to prevent the generation and diffusion of dust with features such as an expandable accordion cover, sealing protection, and nickel-plated components.
Characteristics of Cleanroom Chain Hoist
• Prohibition of copper and zinc.
• 304 stainless steel enclosure structure to meet the requirements of metal foreign object protection and prevent metal contamination in materials.
• Stainless steel hook with no impurities in the rotating parts, equipped with a dust collection box made of non-metallic materials.
• Lifting operation can be single or dual speed, with frequency control, ensuring smooth operation and reducing the swinging of the lifted materials below.
• Can be equipped with a single or double chain structure, with options for remote control and pendant control operation.
• The required height of the hoist is determined by the site conditions. It can be achieved by using a running-type electric chain hoist or a low headroom electric chain hoist structure to meet the height requirements.
Options for Cleanroom Electric Chain Hoist | |
Load capacity | Max 80t |
Travel mechanism | Electric trolley or manual trolley |
Lifting speed | Single or dual speed |
Lifting height | Based on working conditions in meters (m). |
Control mode | Options for control by pendant control or remote control. |
Cable length pendant | Based on working conditions in meters (m). |
Button switch keys | 4 keys, 6 keys, 8 keys, etc. |
Installation position | I-beam, single or double girder overhead crane, jib crane, KBK track, etc. |
Electrical requirements | Inverter, encoder, PLC control, etc. |
Power supply mode | Cable or conductor line, etc. |
Working Principle
When the electric hoist trolley moves along the main I-beam rail, it drives the electric hoist to move together. The expandable accordion cover will contract and stretch as the hoist's hook moves up and down.
The dust cover of the electric chain hoist has a stainless steel structure that extends into the chain box, forming a complete and sealed structure ideal for cleanrooms. This design not only improves company efficiency but also saves money. As an OEM crane manufacturer in China, KUNFENG CRANES was founded in 2003 to provide material handling and storage equipment solutions to manufacturers. Contact us to get more details about cleanroom lifting solution.
