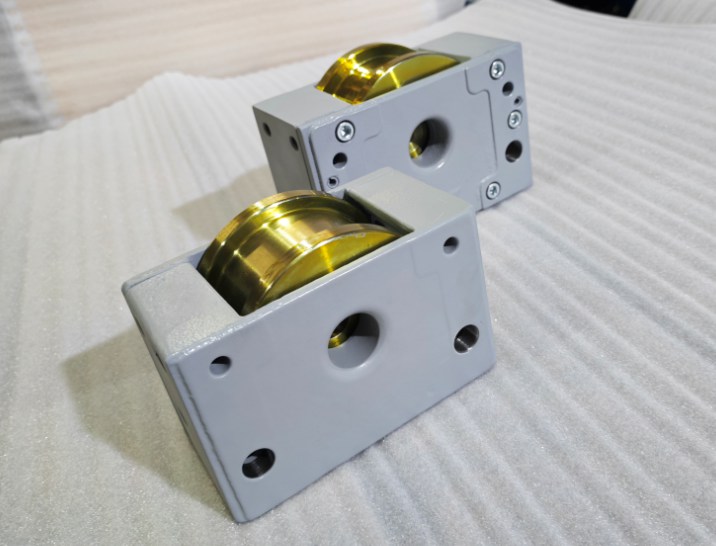

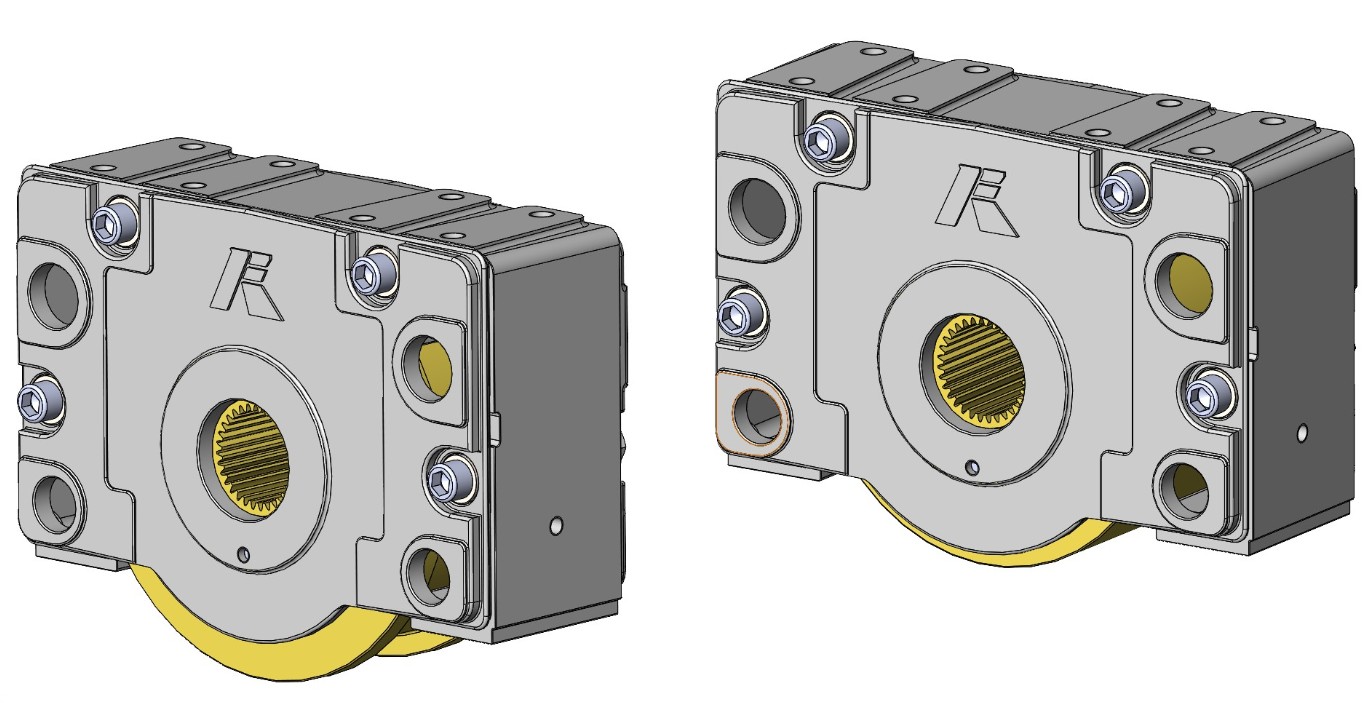

DRSA 160 Wheel Block System

The DRSA 160 wheel block features a modular structural design, integrating high load-bearing capacity, operational stability and flexible configuration. It ensures long-term stable performance under high-frequency operation, heavy loads and complex working conditions, serving as a core traveling component widely used in industrial cranes and automated handling systems.

Structure Composition and Characteristics of Wheel Block

Housing Structure: Manufactured from high strength ductile iron or welded steel structure, providing excellent impact resistance and torsional strength.

Traveling Wheel: Made of high strength alloy steel or ductile iron with surface quenching treatment for outstanding wear resistance.

Bearing System: High precision heavy duty bearings for long service life and low-friction movement.

Sealing & Lubrication System: Sealed design effectively prevents dust and contamination, enabling maintenance-free or long-interval maintenance.

Mounting Interface: Supports top, side and end mounting to adapt to various equipment structures.

Technical Features of DRSA 160 Wheel Block

• Single wheel load capacity up to approximately 7 tons, suitable for medium to heavy duty applications with excellent compression and wear resistance.

• Standardized modular design allows combined configuration according to different working conditions, enabling quick selection and replacement while reducing maintenance costs.

• Available in multiple forms: double flanged, single flanged and polyurethane coated wheels, matching various rail types and application scenarios.

• Precision-machined bearings and optimized gear transmission ensure smooth, shock-free operation.

• Sealed housing design provides effective dust protection, making it suitable for high temperature, dusty and heavy industrial environments.

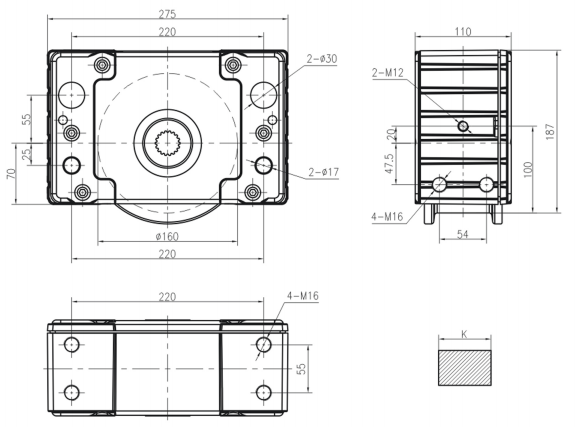

Technical Parameters (Customizable)

Typical Applications

• Overhead cranes and gantry cranes

• Automated warehouses

• AGVs and rail transport equipment

• Heavy duty equipment handling systems

• Port and metallurgical industries

Why Choose KUNFENG Wheel Block System

• Professional manufacturer of wheel block systems, providing customized solutions for global customers.

• One-stop service covering selection, installation, commissioning and after-sales maintenance.

• Adherence to high-quality materials and advanced production equipment to ensure reliable product quality.

• Products comply with many international certifications including CE, ISO 9001 and EN 13001.

Choosing high quality DRSA wheel blocks guarantees stable equipment operation and lower maintenance costs. Feel free to contact us for customized selection solutions, technical drawings or product quotations.
