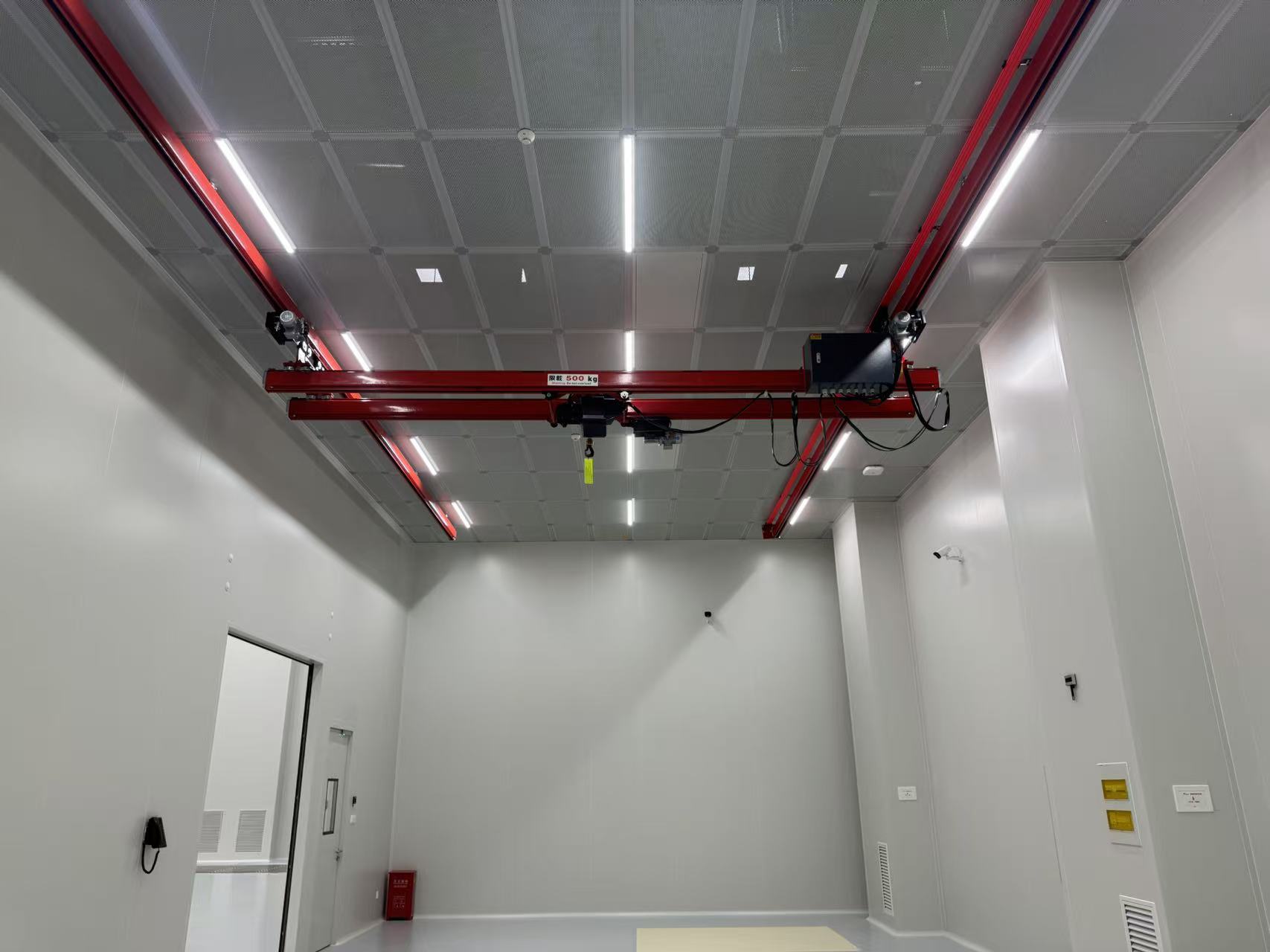

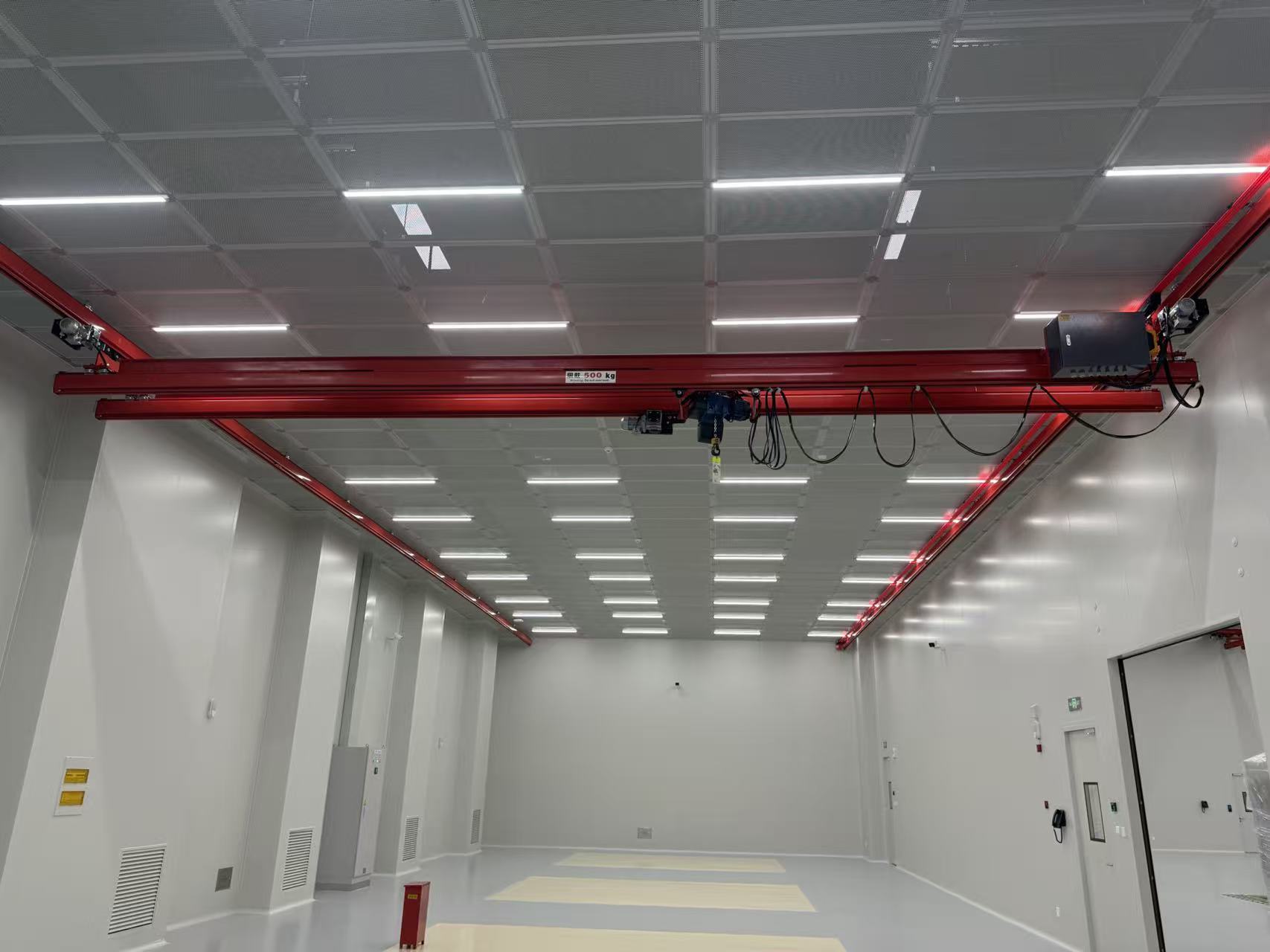

Ceiling Mounted Light-duty Suspended Bridge Crane

In modern production workshops, light-duty material handling system can not only improve production efficiency, but also effectively reduce labor costs and safety risks. The light-duty suspended bridge crane adopts modular structure, with load-bearing rails mounted to the ceiling, thus occupying no floor space. It is suitable for material handling scenarios with limited space and multi-station coverage, with a load capacity ranging from 100 kg to 2,000 kg.

Design Highlights of Light-Duty Suspended Bridge Crane

• Modular structure for flexible installation

• Stable operation and precise positioning

• Support for both manual and electric drive modes

• Optional chain hoist and fiber rope hoist as lifting devices

• Maximizes workspace utilization while minimizing long-term operational costs.

Common Configurations of Light-duty Bridge Crane System

• Rated Load: 100 kg - 2,000 kg

• Span: Customized per Workshop Dimensions

• Rail Material: Aluminum Alloy / Carbon Steel

• Drive Mode: Wireless Remote Control / Wired Control

• Lifting Device: Electric Chain Hoist / Fiber Rope Hoist

• Additional Equipment: Vacuum Suction Cups / Grippers

Frequently Asked Questions

Q: What is the load capacity of the ceiling-mounted bridge crane?

A: The light-duty bridge crane has a load capacity of 100 - 2000 kg, depending on the selection of rails, suspension points and matching trolleys.

Q: What type of lifting device is suitable for clean rooms?

A: It is recommended to use fiber rope electric hoist or belt hoist, together with aluminum alloy or specially treated rail components.

Q: What should be noted when renovating an existing workshop?

A: It is necessary to verify the load-bearing capacity of the roof trusses, the distribution of suspension points and anti-vibration requirements. If necessary, reinforce the supports or adopt a design with dispersed suspension points.

If you are looking for a suitable light-duty overhead crane system, click to contact us for free technical assessment and quotation. Our engineers will provide you with a light-duty material handling solution tailored to your production needs.
