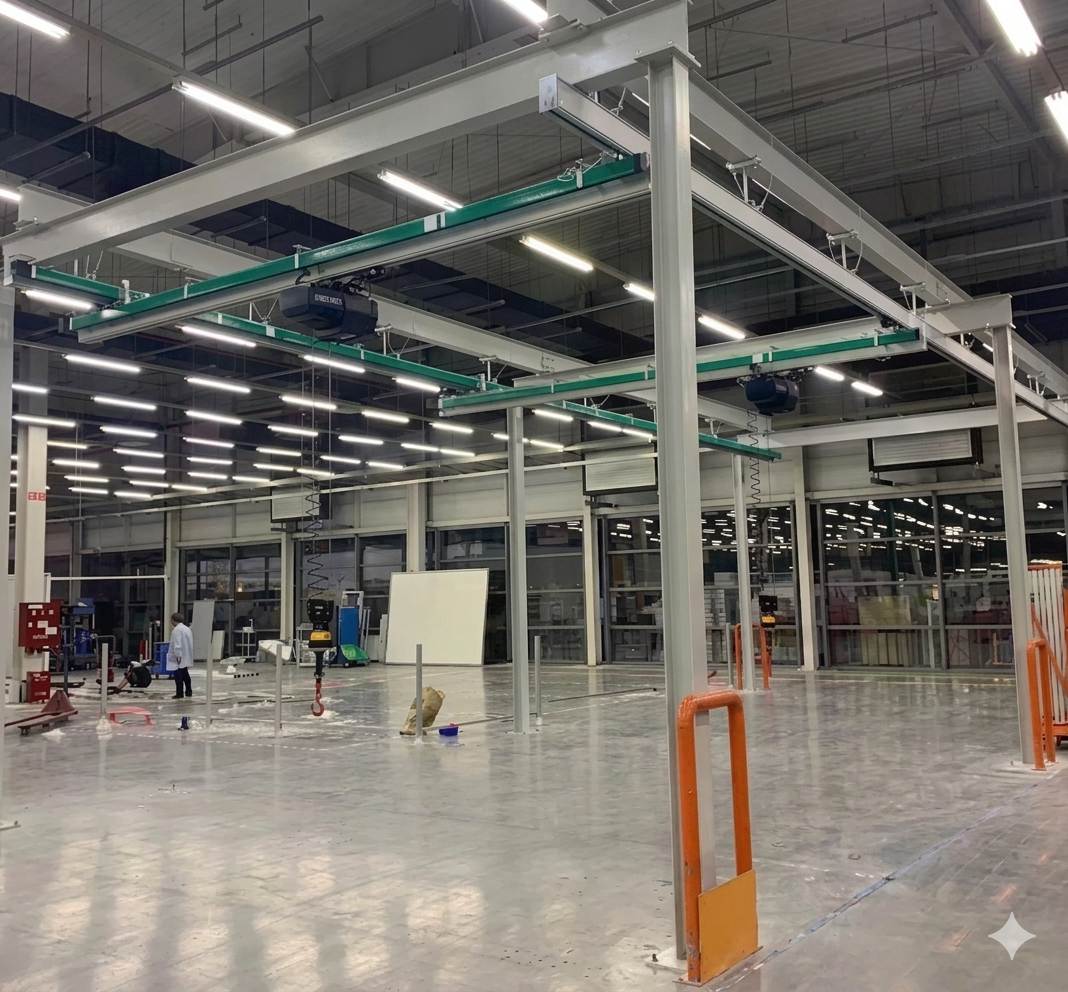

| Lightweight Free Standing Workstation Bridge Crane

The free standing workstation bridge crane is a light duty lifting system designed for flexible manufacturing and efficient material handling in production workshops. Featuring an independent support structure, this system can be installed and deployed without relying on factory columns or the building' s load-bearing structure, providing enterprises with a flexible, efficient and safe material handling solution.

Main Structure and Working Principle of Free Standing Workstation Crane

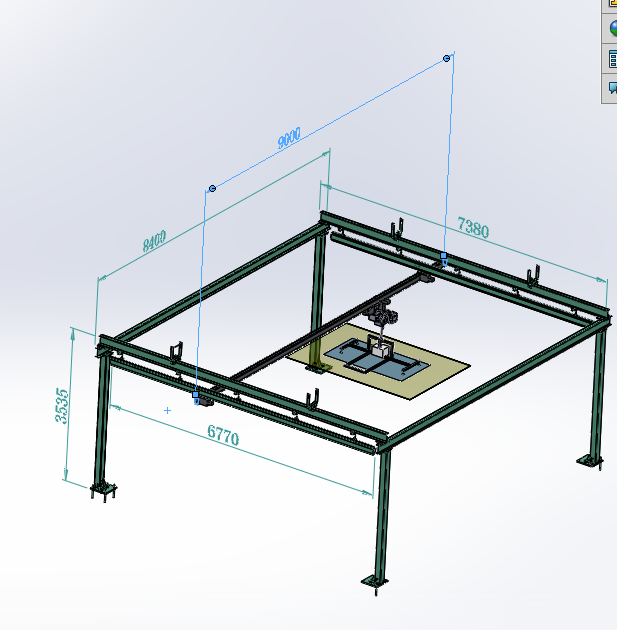

The workstation overhead crane consists of an independent column system, main beam rails, transverse traveling trolley and lifting hoist. The system is constructed with modular aluminum alloy or steel rails to achieve smooth transportation of materials in 2D or 3D space. Operators can perform lifting, traversing and precise positioning within any workstation area, greatly reducing path limitations associated with traditional handling equipment or manual labor.

High Quality Rail System Ensures Smooth Operation

The rail system is the core component of a workstation overhead crane. Commonly used types include:

• Cold-rolled steel rails

• KBK flexible rails

• Light duty aluminum alloy rails

• Rigid enclosed rails

The high precision rail system effectively reduces running resistance, allowing easy movement of small tonnage loads.

Features of the Rail System

• Low running resistance

• Precise positioning

• Low noise

• Long service life

• Low maintenance costs

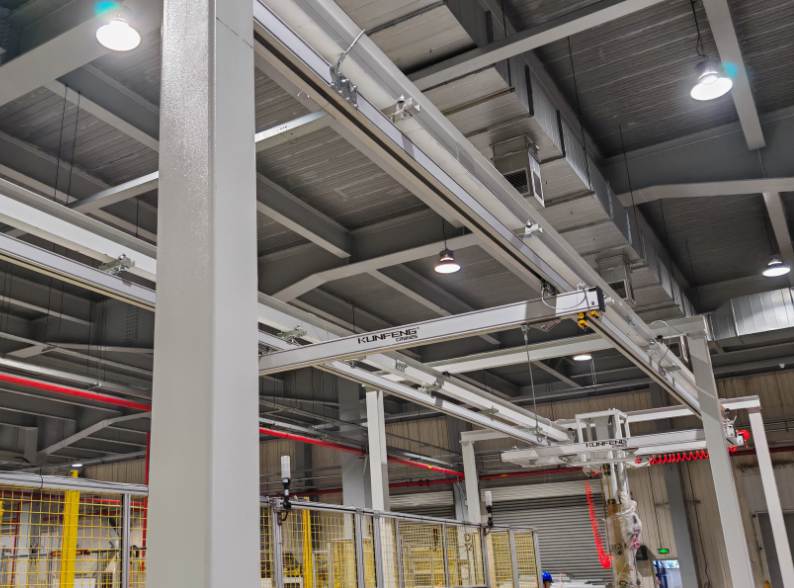

For precision assembly, electronics manufacturing and cleanroom workshops, light duty aluminum rail systems meet ISO cleanliness standards for material lifting and handling.

Performance Advantages of The Light Workstation Bridge Crane

• The system can be directly installed on floor foundations or independent support columns, making it ideal for old factory renovations or new production line layouts.

• Equipped with high strength rails and low friction traveling structures, the crane operates smoothly without swinging and can achieve millimeter-level positioning accuracy, meeting the requirements of precision assembly.

• When paired with electric hoists or light duty lifting devices, operators can easily handle heavy loads, significantly reducing manual labor intensity.

• The system supports customization of span, rail length, load capacity and workstation layout, allowing flexible expansion or adjustment according to different production requirements.

Industry Applications of Free Standing Workstation Crane

Electronics Manufacturing and Precision Assembly: Used for handling and assembling PCBs, electronic components and precision equipment.

Automotive Production Lines: Transportation of engines, gearboxes and automotive parts.

New Energy Industry: Lifting and handling of lithium batteries, energy storage equipment and photovoltaic modules.

Machinery Manufacturing: Used for parts assembly and machine tool loading/unloading.

Cleanroom Environments: Applicable to semiconductor, food and pharmaceutical workshops for safe internal material transfer.

KUNFENG Customized Design for Different Lifting Requirements

• Load capacity customization

• Span customization

• Lifting height customization

• Rail length customization

• Anti-corrosion design for special environments

• Explosion-proof configuration

• Aluminum alloy structural design

• Integration with automated handling systems

Through professional engineering design and solution optimization, the system can achieve seamless integration with production lines.

Light free standing workstation cranes provide ideal solutions for the lifting and handling of various small and medium-sized loads. For more product information, please contact our sales team and we will provide you with tailor-made solution.
