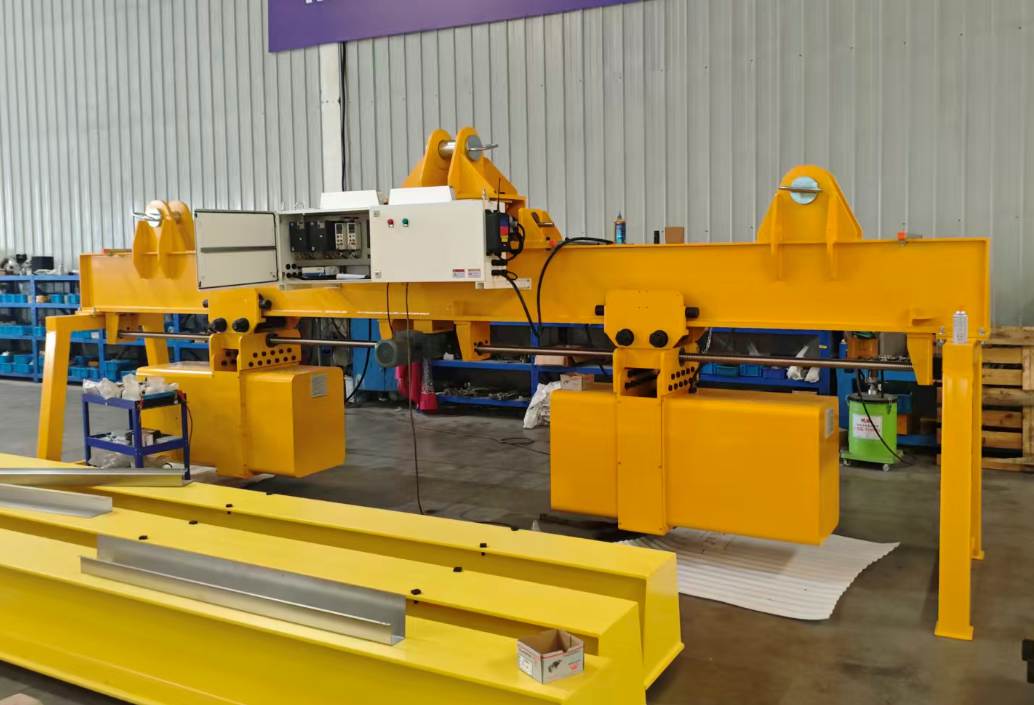

| Automatic Adjustable Balancing Crane Load Rotator

The crane load rotator is an intelligent lifting auxiliary device designed for lifting and turning operations of complex workpieces. Through an automatic balance adjustment structure or dynamic center of gravity control system, this rotating equipment can adjust the stress state in real time according to the shape, weight distribution and center of gravity position of different workpieces, so that the workpiece maintains a stable posture during the turning process. It is widely used in steel structure manufacturing, mechanical processing, automobile manufacturing, pressure vessel production, mold processing and other industries.

Working Principle of the Load Rotator

• The workpiece is wrapped and fixed by chain or belt slings;

• The screw rod adjusts the center of gravity of the workpiece;

• The rotator remains balanced during lifting;

• Completes 0°～360° rotation according to the set angle;

• Automatically locks the position when reaching the specified angle;

• Places the workpiece smoothly.

During the entire turning process, the rotating device continuously maintains load stability, avoiding workpiece swing, eccentric load and impact, thus improving hoisting accuracy.

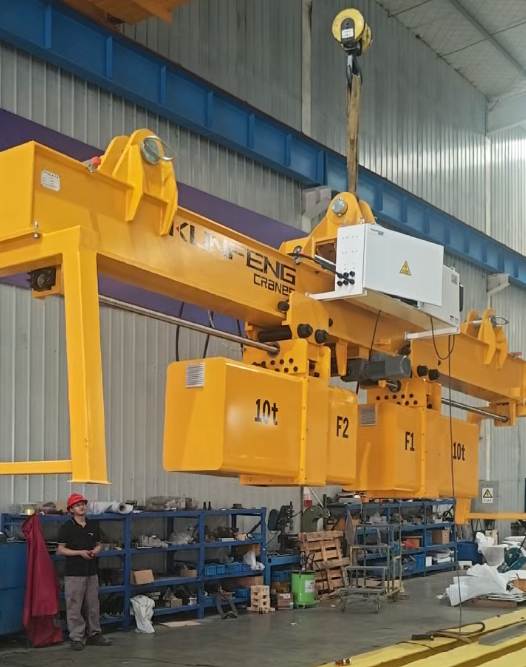

Main Structural Components of the Rotator Turning Device

Main Load-Bearing Frame: Made of high strength alloy steel or high quality structural steel, welded and optimized through finite element analysis, ensuring excellent load capacity and rigidity.

Automatic Balancing Mechanism: Equipped with a screw-rod balancing system that automatically adjusts the lifting point spacing to maintain load equilibrium.

Rotation Drive System: Driven by servo motor for precise control, ensuring smooth and impact-free turning.

Turning Slings: Chain or belt slings are available to suit different workpieces.

Control System: Intelligent operation and management via wireless remote control or PLC control system.

Safety Protection System: Equipped with multiple safety protection measures (overload protection, limit protection, emergency stop system, motor brake system, etc.) to ensure safe operation.

Product Features of Crane Load Rotator

• Automatically adjusts lifting points according to changes in the center of gravity, ensuring optimal load balance at all times.

• Supports precise positioning at any angle, enabling continuous or segmented rotation for high precision assembly requirements.

• Real-time load monitoring and automatic posture correction to enhance operational stability.

• Multiple control modes including push button control, wireless remote control and touchscreen operation, allowing one person operation.

• Compatible and integrable with existing overhead crane in workshop.

Advantages Compared with Traditional Flipping Devices

Get in Touch With a Professional Manufacturer of Load Turning Devices

If you are looking for a professional turning solution that improves lifting safety level, optimizes production processes and adapts to various complex workpieces, contact our lifting experts now and provide the load, turning angle, workpiece dimensions and production conditions. We will customize an efficient and safe lifting and rotating device for you.
