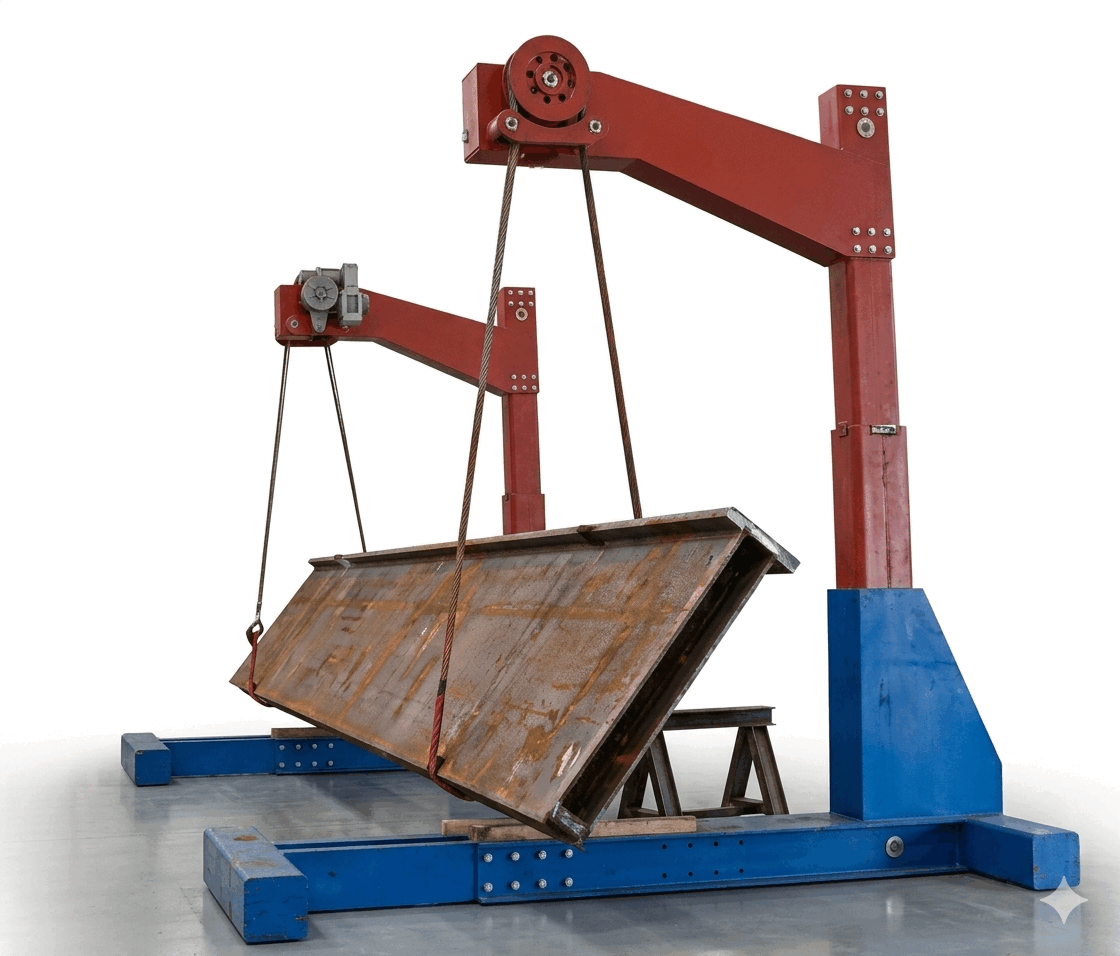

| Ground Mounted Lifting Steel Beam Rotator

The KUNFENG beam rotator is an automated lifting and rotating device engineered for large beam workpieces and welded assemblies. Equipped with robust ground mounted support structure, height adjustable lifting system and electric rotating mechanism, it enables precise positioning and flexible rotation of workpieces on construction sites and in factory workshops. It delivers an efficient and safe material turnover solution for steel structure manufacturers.

Robust Ground Mounted Structure Ensures Stable Operation

This flipping beam rotator is built with heavy duty steel frame structure, offering excellent load-bearing capacity and operational stability. It is capable of supporting heavy beams while maintaining safe and reliable performance throughout the turning process.

Main Structural Features

• High strength support columns

• Heavy load base structure

• Reinforced connecting components

• Anti-torsion design

• Anti-overturn safety structure

The rotating equipment maintains stable performance even under continuous heavy load working conditions. Its rated load ranges from 1 ton to 20 tons to meet diverse production requirements of customers.

Height-Adjustable Design for Different Working Conditions

Powered by the hydraulic lifting system, operators can flexibly adjust the lifting height according to workpiece dimensions and production processes to create optimal working space.

Benefits of the Adjustable Lifting Design

• Optimized welding positions

• Improved assembly accuracy

• Easier surface treatment and painting

• Ergonomic assembly operations

For extra-long steel beams and large welded structures, the adjustable lifting function significantly enhances workplace adaptability and operational convenience.

Electric Rotation System for Precise Rotating Control

The rotator utilizes electric-driven rotation mechanism combined with variable-frequency speed control technology to achieve smooth and controlled workpiece rotation.

Available Rotation Functions

• Continuous 360° rotation

• Precise positioning at any angle

• Consistent weld processing quality

The rotator runs steadily without impact loads during rotation, effectively preventing workpiece swing and damage.

How to Properly Operate Steel Beam Rotator

Operators activate the built-in hydraulic mechanism via the standard handheld remote control, which drives the piston to lift the equipment columns fitted with belt slings or chain slings. The cross beam is then lifted off the workbench. Operators can rotate the beam, adjust it to any tilt angle and height, and lock it in place. This creates an ergonomic working posture for more comfortable installation and welding operations.

Suitable for Rotating Various Long and Heavy Duty Workpieces

• H-beams

• Box girders

• I-beams

• Steel structure weldments

• Heavy machinery frames

• Molds and equipment bases

To accommodate different workpiece lengths, weights and center-of-gravity positions, the rotating equipment can be custom-engineered to meet specific application requirements. This ensures that the workpiece remains evenly supported throughout the turning process, effectively minimizing the risk of deformation and improving operational safety.

Why Choose KUNFENG Beam Rotator

As a professional manufacturer of heavy duty turning equipment, KUNFENG is committed to providing safe, efficient and reliable workpiece rotation solutions. Our lifting and rotating equipment incorporate proven mechanical designs and advanced electric control technology, allowing for customized configurations based on actual operating conditions. It helps enterprises boost production efficiency, cut labor intensity and improve product quality.

If you are looking for a beam rotator for your steel fabrication plant, our experienced engineering team can provide a customized solution based on your specific production requirements. Through proper equipment configuration and professional technical support, we help you select the most suitable rotator for your manufacturing process. Contact us today to discuss your application requirements and find the ideal beam rotation solution for your operation.
