DESCRIPTION:
Turnover spreader beams are an intelligent lifting attachment designed specifically for the rotation of heavy objects, enabling the workpiece to be turned smoothly and accurately at any angle.
INDUSTRIES:
Lifting Equipment
HOTWORDS:
Turnover spreader beams, Load turning device

| Want to know more about Turnover Spreader Beams for Rotating Heavy Loads?

Turnover spreader beams are an intelligent lifting attachment designed specifically for the rotation of heavy objects, enabling the workpiece to be turned smoothly and accurately at any angle.

In modern manufacturing, the demand for turning and positioning large-sized and heavy workpieces is increasing. Traditional manual turning or simple machinery often cannot meet the requirements of safety, efficiency and precision. Turnover spreader beams, as an intelligent lifting accessory designed specifically for heavy object rotation, are helping various industries to achieve a comprehensive upgrade of turning operations.

Belt turnover spreader beams

Core features of turnover spreader beams

  ● Adopting high-precision planetary reduction gearboxes and wear-resistant bearings, it can achieve all-round, smooth and continuous rotation at any angle, and the turning accuracy can reach ±0.1°.

  ● The main beam is welded from alloy steel, with excellent bending and torsion resistance, and the maximum load capacity can reach tens of tons, ensuring the stability of heavy objects during turning.

  ● Supporting a variety of standard or customized workpiece interfaces, users can flexibly adjust according to the shape and size of the workpiece, without frequent replacement of accessories, reducing equipment downtime.

  ● Real-time monitoring of load status, automatic power cut-off and mechanical self-locking when overloaded, eliminating the risk of slippage.

  ● Supporting wireless remote control, touch screen and PLC automation integration, preset turning programs, and one-click completion of complex actions.


Technical specifications reference

Parameters

Typical configuration

Maximum load capacity

5–50 tons

Rotation angle range

0–360°

Positioning accuracy

±0.1°

Turnover cycle

≤30 seconds (full load)

Motor power

1.5–5 kW

Control mode

PLC programmable logic control / Manual button

Interface form

Quick-install standard flange / Customized interface

Safety device

Overload protection, electronic/mechanical limit, emergency stop button

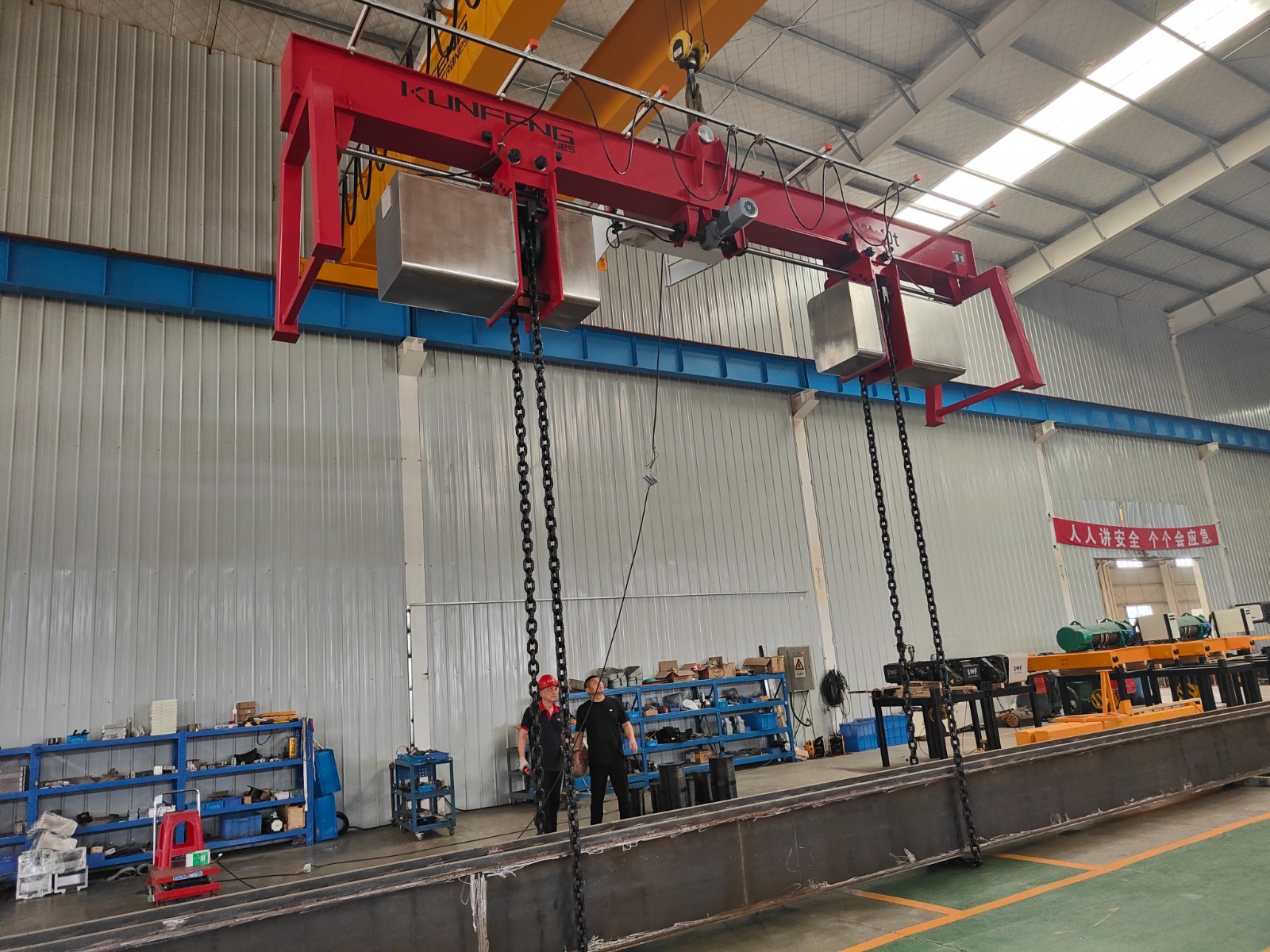

Chain load turning device

Application cases of turnover spreader beams

  ● Automobile manufacturing: On the chassis assembly line, the upper and lower sides of the parts can be precisely operated without manual flipping, ensuring the quality of welding and inspection.

  ● Wind turbine blade flipping: Accurately adjust the blade angle, assist in grinding and painting processes, and improve process consistency.

  ● Die casting and mold manufacturing: Direct inspection and post-processing of die castings after demolding to improve the yield rate and reduce damage to the surface of the finished product caused by manual handling.

  ● Steel structure processing: Welding and spraying operations of large H-beams, industrial containers and other equipment do not require an overall flipping platform, saving space and shortening the switching time.


If you are looking for a reliable and stable solution for rotating heavy objects, turnover spreader beams will be your ideal choice. Welcome to contact us for more product details and preferential quotes!

| Experience and expertise

Turnover spreader beams for rotating heavy loads have high load-bearing capacity and 360-degree rotation. They are equipped with adjustable span and automatic balancing system, are compatible with a variety of workpiece sizes, support remote control and automation integration, and greatly improve the efficiency and safety of heavy assembly, welding and loading and unloading operations.
