DESCRIPTION:
Cleanrooms are classified according to the number and size of particles permitted per volume of air. Large numbers like class 100 or class 1000 refer to FED-STD-209E, and denote the number of particle.
CATEGORY:
CREATED:
Apr 25, 2023

Cleanrooms are classified according to the number and size of particles permitted per volume of air. Large numbers like "class 100" or "class 1000" refer to FED-STD-209E, and denote the number of particles of size 0.5 μm or larger permitted per cubic foot of air.

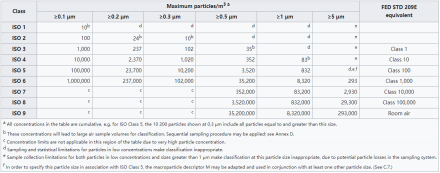

CLASS

Number of Particles per Cubic Meter by Micrometer Size

FED STD 209E

equivalent


0.1 microns

0.2 microns

0.3 microns

0.5 microns

micron

5 microns


ISO 1

10

2






ISO 2

100

24

10

4




ISO 3

1,000

237

102

35

8


Class 1

ISO 4

10,000

2,370

1,020

352

83


Class 10

ISO 5

100,000

23,700

10,200

3,520

832

29

Class 100

ISO 6

1,000,000

237,000

102,000

35,200

8,320

293

Class 1000

ISO 7




352,000

83,200

2,930

Class 10,000

ISO 8




3,520,000

832,000

29,300

Class 100,000

ISO 9




35,200,000

8,320,000

293,000

Room Air

Frankly speaking, it's difficult to completely eliminate contamination in a cleanroom, the measures only mean it's controlled to acceptable levels. Our cleanroom crane is strictly based on the cleanroom grades' requirements

Cleanroom air control: The more air a cleanroom has, the faster the cleaning is. Cleanrooms need a lot of air to stay clean. Air systems circulate air through the cleanroom, keeping the temperature and humidity stable while removing contaminants. Cleanrooms are usually pressurized by allowing in more air than the amount that goes out.

The internal surface: Every surface in the cleanroom should be smooth and impenetrable so that it doesn't generate its own contaminants such as dust or corrosion, which makes it easier to clean the surface when surfaces aren't prone to cracking, shattering, or creasing. Corrosion-resistant cranes provide an excellent solution for material handling in cleanrooms, semiconductor industries, because they never sheds particulate matter, and is lighter and more conductive.

cleanroom overhead crane

Operating a cleanroom: Operating a cleanroom properly helps to maintain its air quality. The amount of contamination from manufacturing operations should be minimal and the cleanroom should be regularly cleaned through the proper laid-down guidelines. Maintenance of the equipment and air control systems should also be regularly undertaken. Most importantly, only trained personnel should have access to the cleanroom. Thanks to the cleanroom crane, which makes the lifting operation efficiently and safely while maintaining the required environment. Corrosion-resistant stainless steel housing makes it widely used in both pharmaceutical and foodservice industries.

Interested in cleanroom crane? Contact us for more details.
