Truck Chassis Load Turning Device Exported to Argentina

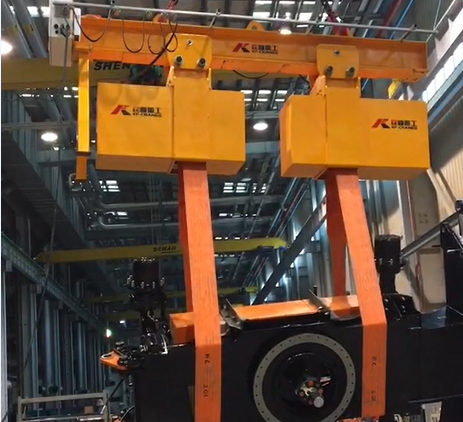

KUNFENG load turning device is a highly efficient device designed for industrial applications that can easily turn over various heavy objects, including truck chassis. Through innovative structural design and electric drive system, the turning device can stably turn the truck chassis from a horizontal position to the desired angle. The device is equipped with a sophisticated control system to ensure a smooth and safe turning process without additional human intervention. Client can customize the size and load capacity of the device according to their needs to adapt it to truck chassis of different models and sizes, greatly improving work efficiency and reducing operational risks.

Customer background and requirements

• Country: Argentina

• Industry: Truck manufacturing

• Specific uses and requirements: A turning device for rotating the truck chassis

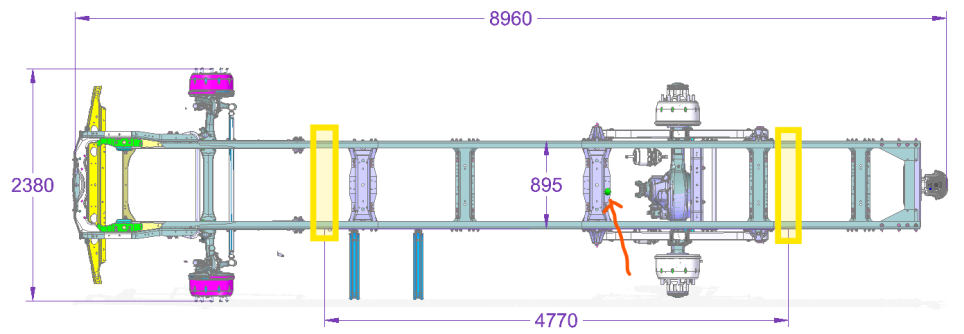

• Workpiece max dimensions: 11.500mm x 2400mm x 600mm (Truck Chassis, Various models)

• Weight of the workpiece (kg): 8000kg

• Material of workpiece: Metalic

• Description of workpiece: Truck and Bus Chassis, Various Models

• With or without adjustable driving wheels ? (min. & max. Driving wheel distance): Adjustable, Min distance: 4000mm, Max distance: 6500mm

• The turning angle of the work piece? (90°, 180°, 360° or others?): Positions 0° and 180°

Advantages of belt load turning device

• The belt drive system operates smoothly and can quickly complete the load turning, saving time and improving production efficiency.

• Equipped with an advanced control system, the turning angle can be accurately adjusted to ensure the accuracy of each turning and avoid load damage.

• The parameters can be adjusted according to different load sizes and weights, suitable for a variety of industries and application scenarios, such as the turning of heavy objects such as truck chassis and mechanical parts.

• Equipped with multiple safety protection measures, such as overload protection and emergency stop function, to ensure that the operator is always in a safe state during the turning process.

• Low vibration and low noise during operation, able to maintain stable operation in harsh environments, suitable for long-term and high-intensity use.

If you are looking for an efficient, safe and reliable load turning device, please contact us, we will provide you with tailor-made solutions to help your production be more efficient and safe!
