The heavy truck frame load turning device is an indispensable and important equipment in the automobile manufacturing industry.

The heavy truck frame load turning device is an indispensable and important equipment in the automobile manufacturing industry. It is mainly used to realize the flipping operation of the frame for subsequent assembly, welding and inspection processes.

Truck frame load turning device

Structure and composition

The heavy truck frame load turning device is mainly composed of a frame, a turning mechanism, a driving device, a control system and other parts. The rack is the supporting structure of the entire equipment. It is usually welded with high-strength steel and has sufficient load-bearing capacity and stability. The flipping mechanism is the core part. It includes the flipping frame, chain, sprocket, etc., and is the key component to realize the flipping of the frame. The driving device usually uses an electric motor or a hydraulic motor to provide power for the flipping mechanism. The control system is responsible for the operation control of the entire equipment, including the setting and adjustment of flip speed, flip angle and other parameters.


How to implement flip function

The heavy truck frame load turning device drives the flipping mechanism through the driving device to realize the flipping of the frame. The specific operation process is as follows: First, place the vehicle frame on the flip frame and fix it with clamps or locking devices. Then, the driving device is started to cause the flipping mechanism to start moving. During the turning process, the chain and sprocket play the role of transmitting power and maintaining balance. With the movement of the flipping mechanism, the frame gradually flips from the horizontal position to the vertical position, completing the entire flipping process. Finally, the driving device is turned off, and the frame is fixed in the flipped position through clamps or locking devices to facilitate subsequent assembly, welding, and inspection processes.

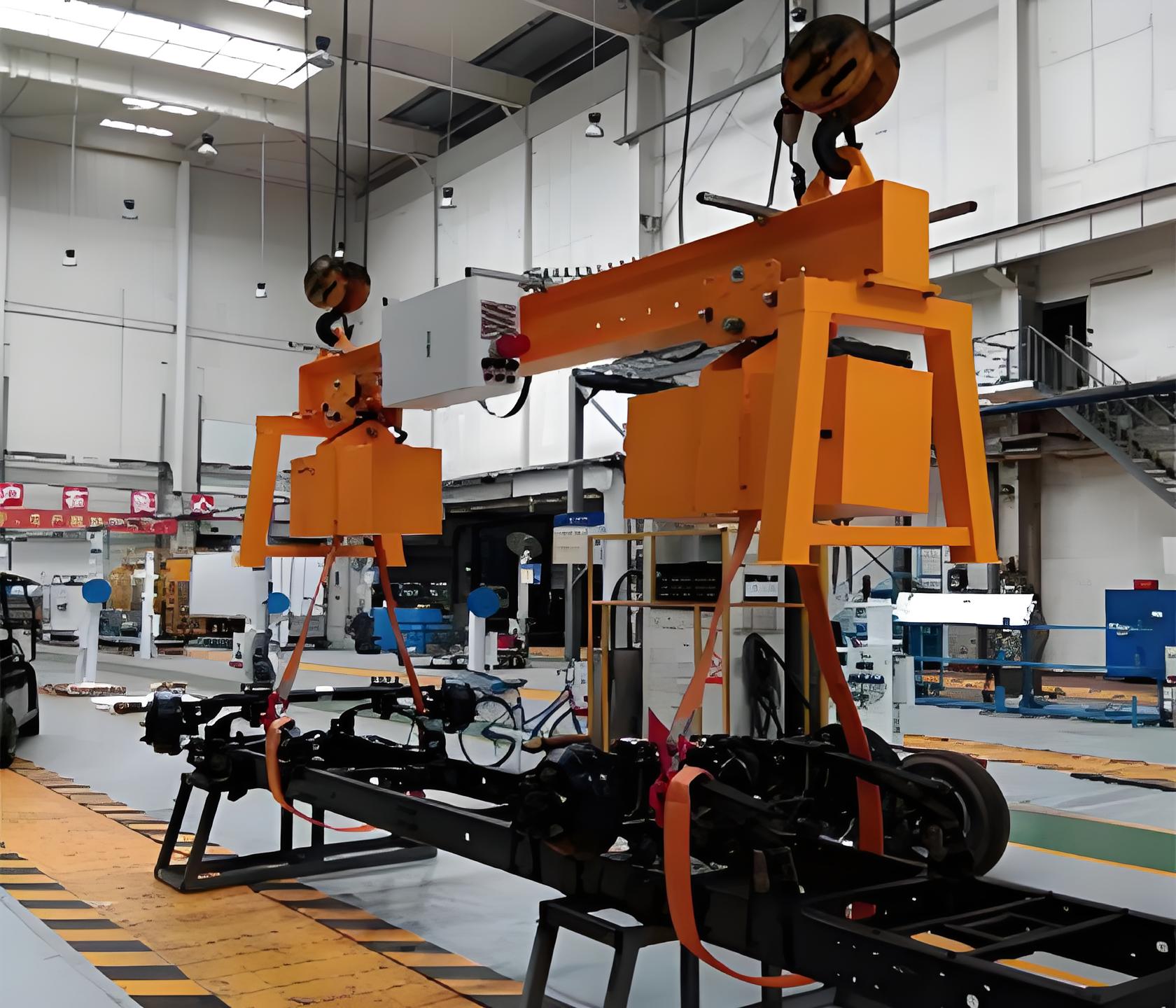

Belt type load turning device

Design Features

  ● The use of high-strength steel and optimized structural design can improve the load-bearing capacity and stability of the equipment.

  ● Using an advanced control system, the frame can flip smoothly and reduce shock and vibration.

  ● The control system is simple and easy to understand, and operators can quickly master the operation method of the equipment.

  ● The equipment is equipped with necessary safety protection devices and warning signs to ensure safety during operation.

  ● By adjusting the parameters of the flipping mechanism and configuring different clamps or locking devices, it can adapt to different specifications and types of frame flipping needs.

| Experience and expertise

The heavy truck frame load turning device is a piece of equipment specially designed to flip the chassis or frame of a heavy truck. It usually consists of a solid frame, hydraulic system and control system. The main function of the heavy truck frame load turning device is to provide a convenient way to flip the vehicle's chassis or frame when repairing and maintaining heavy trucks, so that maintenance personnel can more easily repair, inspect and replace parts. This equipment can improve the efficiency and accuracy of maintenance work while ensuring the safety of maintenance personnel.
