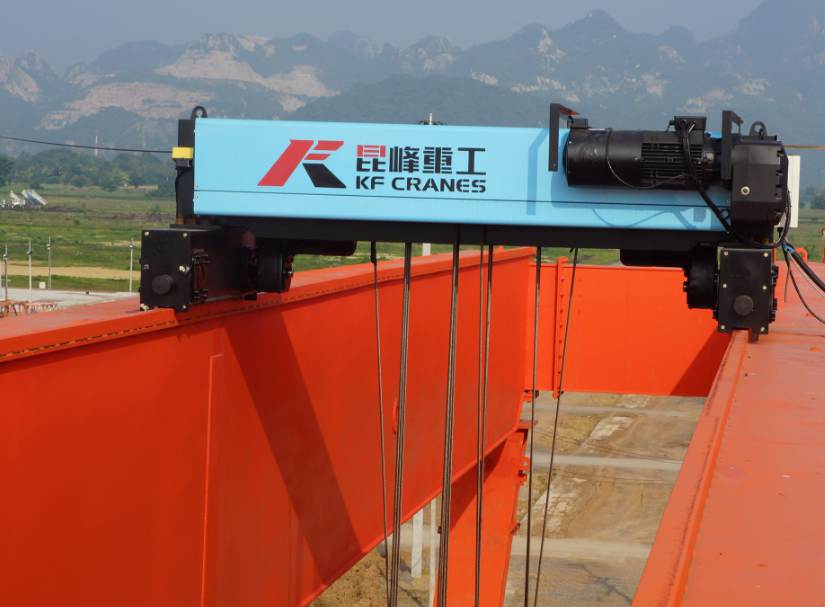

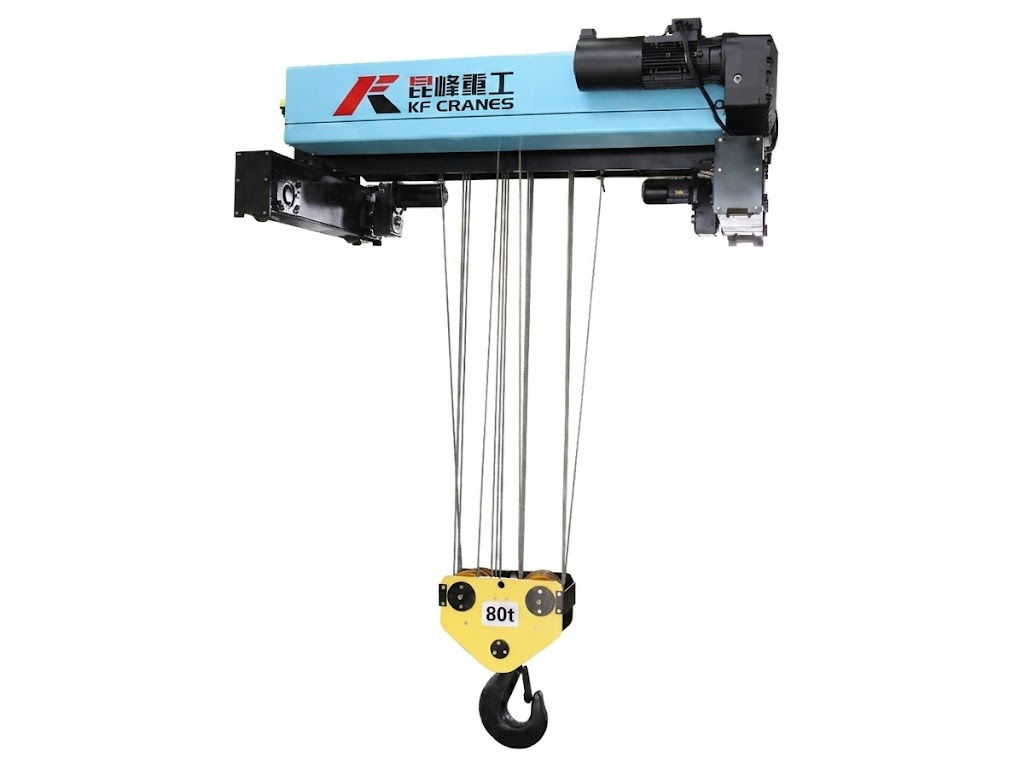

| 1T to 80T European Double Girder Wire Rope Hoist with Trolley

The wire rope hoist with trolley can perform both horizontal traveling along I-beam rails or under the main girder of overhead cranes and vertical lifting, enabling efficient and safe handling of medium to heavy loads. With a compact structure, stable operation and flexible control, it is one of the key lifting equipment in modern industrial crane systems.

Structure and Working Principle of Wire Rope Hoist with Trolley

The equipment mainly consists of a wire rope lifting mechanism, gear motor, drum system, braking device, electric control system and traveling trolley. During operation, the motor drives the drum to rotate, allowing the wire rope to wind and unwind, thus completing the vertical lifting of heavy loads. The trolley travels on the rail by electric or manual drive to achieve lateral movement. Through the coordinated motion in both vertical and horizontal directions, precise positioning and handling of materials in three-dimensional space can be realized.

Product Technical Parameters

• Lifting Capacity: 1 - 80 ton

• Lifting Height: 6 - 30 m

• Lifting Speed: 0.8 - 8 m/min

• Trolley Speed: 5 - 20 m/min

• Working Class: M4 - M7

• Ambient Temperature: -20 - 60℃

Product Performance Features of European Wire Rope Hoist

• Reinforced box structure and load-bearing frame, suitable for high frequency continuous operation.

• Equipped with an integrated traversing trolley, it can run on double girder, single girder or overhead rails to realize load lifting and lateral movement.

• Variable frequency motors are adopted for speed control, featuring low noise, excellent dynamic acceleration and dual-sided braking.

• The wire rope is galvanized, offering high strength, flexibility and long service life.

• Integrating motor, brake and gear reducer, it is convenient for installation, maintenance, inspection and replacement.

Quality Control and Manufacturing Standards

Our wire rope hoists are designed and manufactured in compliance with international and industrial standards, including FEM, ISO, GB/T and other specifications, to ensure structural strength, electrical safety and operational stability. All key components undergo strict fatigue testing and load testing to guarantee reliable performance even under long-term, high-intensity service conditions.

Whether in heavy manufacturing, warehousing and logistics, or precision assembly, we provide efficient, safe and economical material handling solutions. Contact our lifting experts now for customized solution and product quotation tailored to your requirements.
