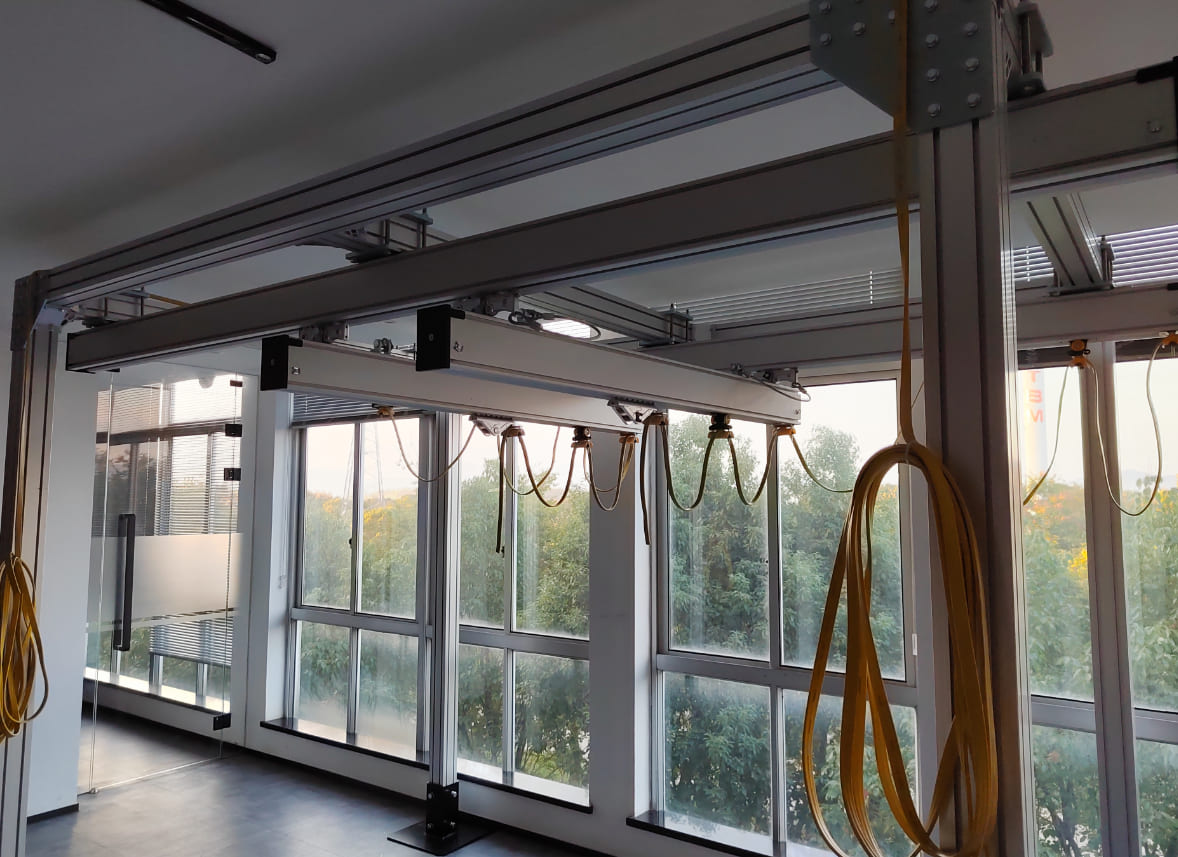

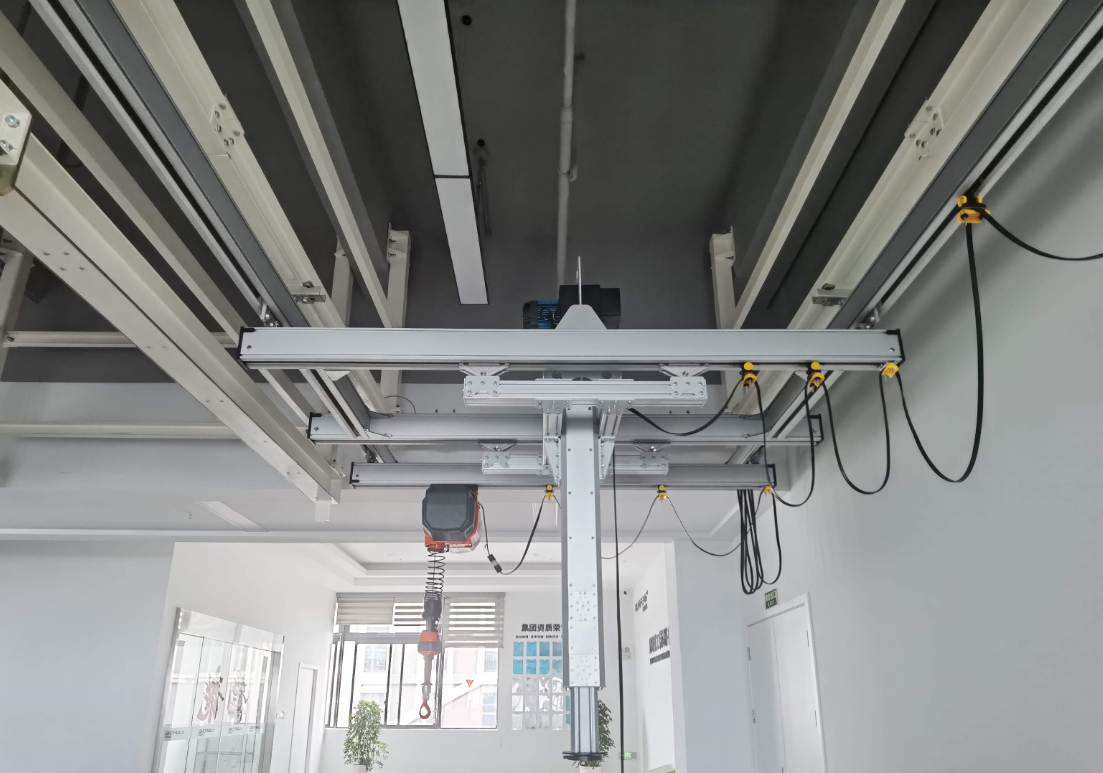

| Aluminum Rail Double Girder Suspension Bridge Crane

The aluminum rail double girder suspension bridge crane (aluminum rail system) is a lightweight lifting solution guided by high strength aluminum alloy rails and supported by dual beams. It combines the modularity, ease of installation and flexible layout of the aluminum rail system with the high load-bearing and torsional rigidity of the double girder structure. It is an ideal choice for safe, efficient, low-weight and scalable production lines.

Lightweight Aluminum Alloy Structure for Flexible Lifting Operations

Aluminum light suspension cranes feature lightweight overall structure with excellent load-bearing capacity. The lighter rails reduce running resistance, effectively lowering manual pushing force or motor load, thus improving overall operating efficiency. The suspended installation fully utilizes overhead factory space without interfering with floor passages or equipment layout, making it ideal for production workshops with limited space or requiring multi-station coverage.

Double Girder Design Ensures Stable Load Distribution

Compared with single girder systems, double girder suspension structures offer enhanced stability and resistance to eccentric loading, making them suitable for long workpieces, precision equipment and multi-point lifting applications.

Advantages of double girder design:

• Improves running stability and reduces sway

• Suitable for larger span lifting requirements

• Enhances balanced load distribution

• Compatible with various electric hoist systems

• Effectively increases lifting accuracy and operational safety

Manual & Electric Operation for Diverse Working Conditions

Manual Operation System

Suitable for light load, low frequency handling: simple operation, low cost, easy maintenance, ideal for assembly lines and workstation applications.

Electric Operation System

Suitable for high frequency or automated production environments: improves efficiency, reduces labor intensity, enables precise positioning and supports variable frequency control and intelligent upgrades.

Product Technical Parameters (Customizable)

• Lifting Capacity: 150kg - 3000kg

• Span: 3m - 15m (Customizable)

• Lifting Height: 3m - 8m

• Track Material: High strength aluminum alloy profile

• Girder Material: Steel double girder or aluminum alloy beam

• Operating Method: Manual or Electric

• Hoist Type: Electric Chain Hoist / Fiber Belt Hoist / Manual Hoist

• Surface Treatment: Anodized Aluminum / Anti-Corrosion Treatment


Aluminum Suspension Bridge Crane for Multi-Industry Light Lifting & Clean Handling

Semiconductor and Cleanroom Industry: Used for wafer handling, precision equipment installation and cleanroom maintenance.

Precision Electronics Manufacturing: Suitable for handling PCB, display panels and electronic components.

Automotive and Component Assembly: Used for lifting engines, parts and tooling fixtures.

New Energy and Lithium Battery Industry: Suitable for battery modules, precision materials and automated equipment handling.

Mechanical Processing and Assembly Lines: Enables multi-station material transfer and workpiece positioning.

With its lightweight, modular and high-load capacity, aluminum rail suspension bridge crane is the optimal choice for modern intelligent production lines, cleanrooms and precision manufacturing. Contact us for a quick, customized solution and product quote.
