30 Ton Capacity DRSA 400 Wheel Block System

| 30 Ton Capacity DRSA 400 Wheel Block System

DRSA Wheel Block System is a versatile travel wheel system and is perfectly integrated into our modular drive system. Made of self-lubricating spheroidal graphite cast iron, travle wheels have low friction and high resistance to wear.

CATEGORY:

DRSA Wheel Block System

CREATED:

Apr 19,2023

INDUSTRIES:

Used in crane, trolley and systems building as well as in custom applications and special constructions.

HOTWORDS:

Wheel Block System, Travel Wheels, DRSA 400 Wheel Block System

| Want to know more about 30 Ton Capacity DRSA 400 Wheel Block System?

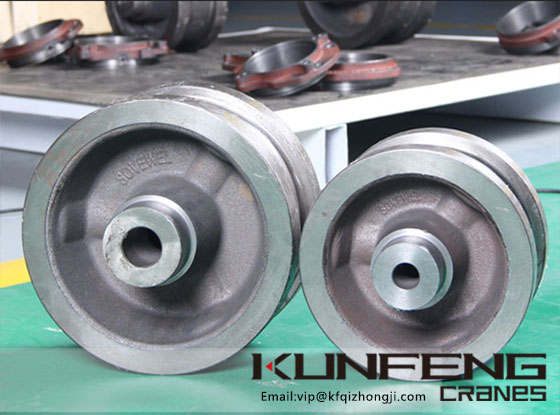

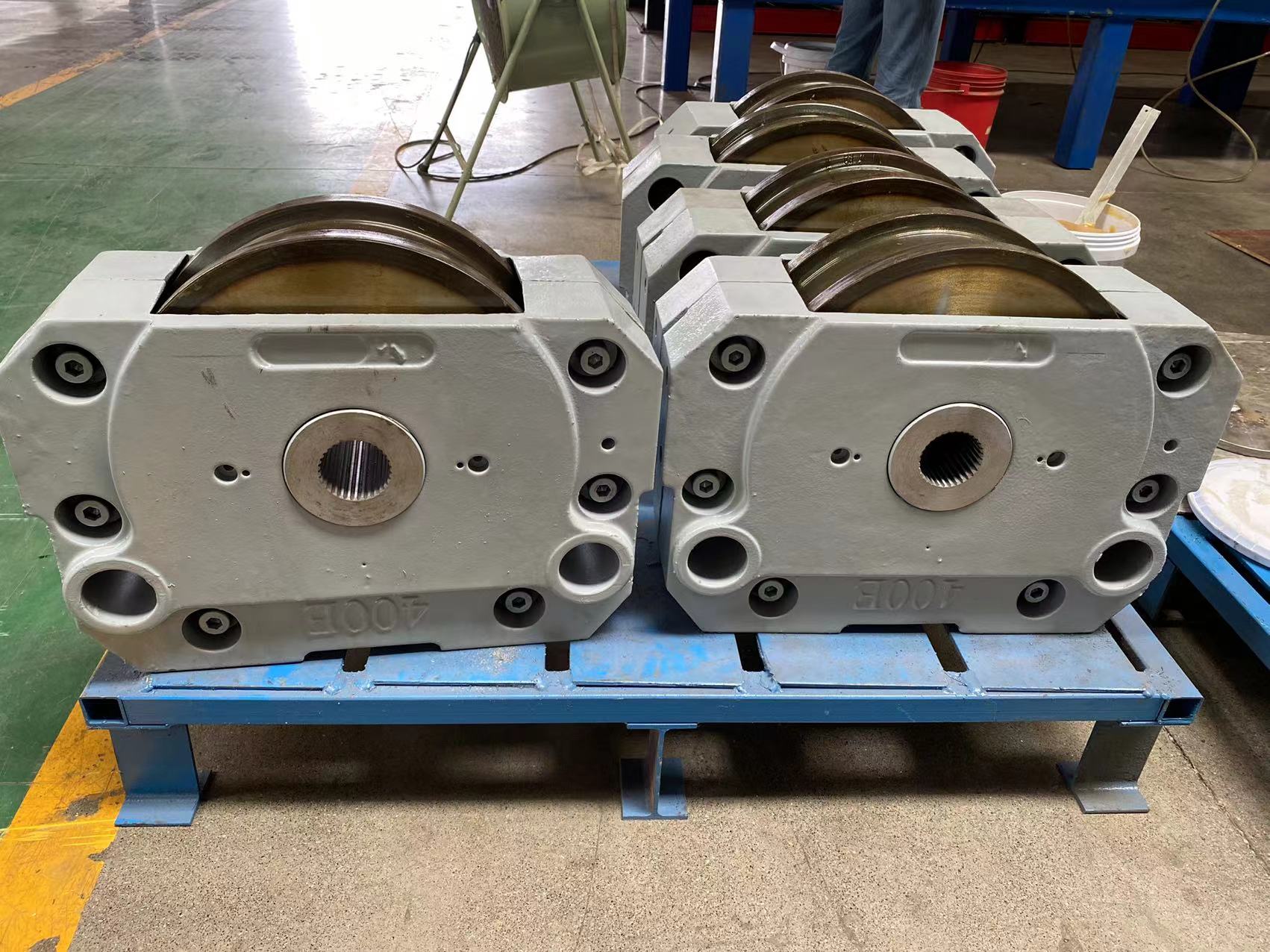

DRSA Wheel Block System is a versatile travel wheel system and is perfectly integrated into our modular drive system. With the load capacity of 30 ton, the DRSA 400 wheel block system can be moved and aligned laterally after they have been installed in hollow sections and beams (For top, end and pin connection arrangements) Four connection of Wheel Blocks Made of self-lubricating spheroidal graphite cast iron, travle wheels have low friction and high resistance to wear.

Further Strengths:

• High performance range and large capacity

• Many travel wheel shapes as standard as well as customer-specific designs. special paint can be applied to wheels blocks at the request of the customer. For example,

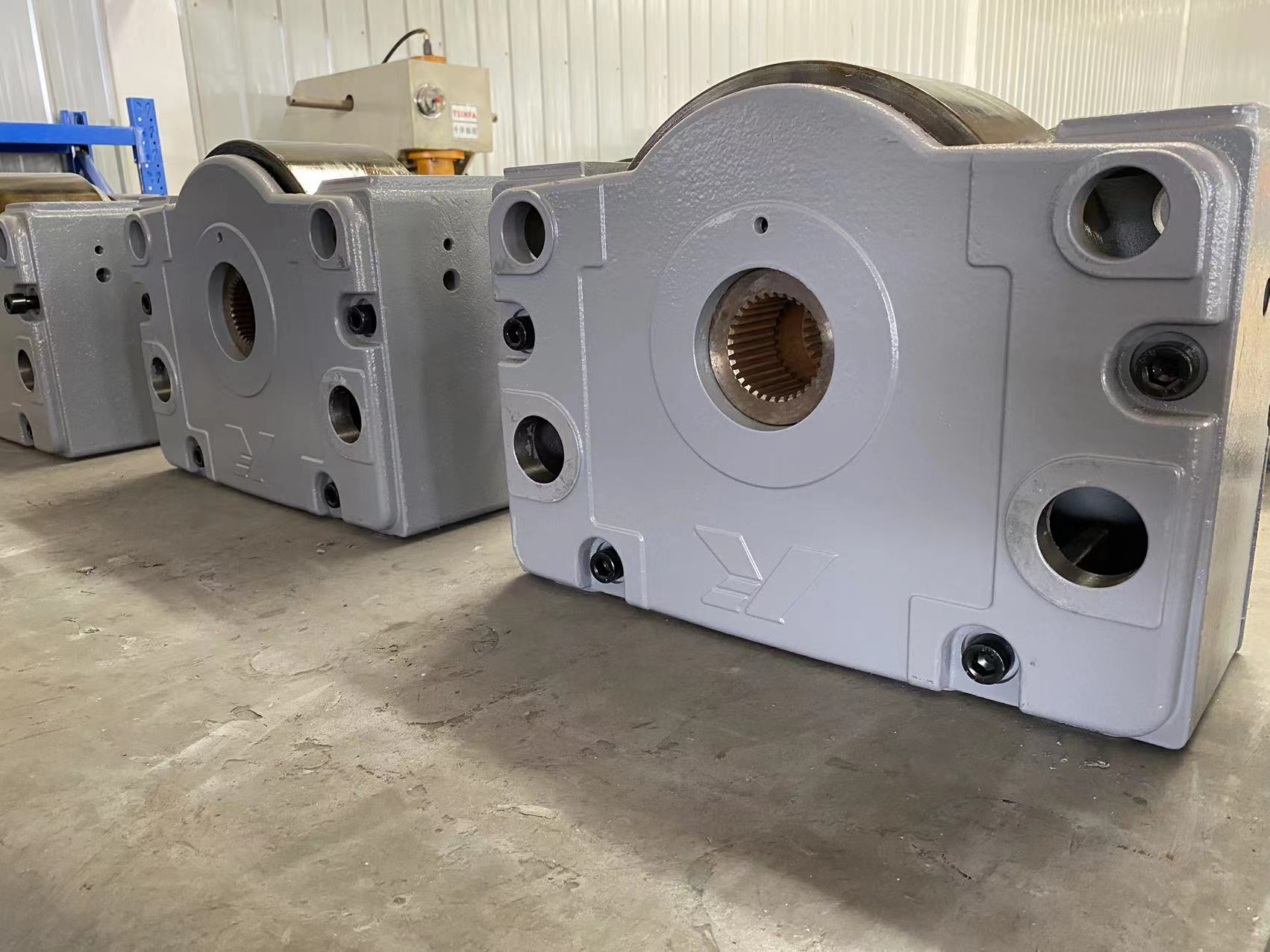

• Strong housing: high-quality housing with optimum protection of the travel wheels and bearings. The corrosion-resistant, die-cast aluminum housing makes DRSA 200 even more robust and protects it from external mechanical influences.

• Wide application: eight finely graded sizes (DRSA 112 to DRSA 500) of travel wheels and special wheel designs enable them to be adapted to almost any travel rails and operating conditions.

	Capacity (ton)	Weight (kg)	Diameter (mm)	A1	B1	B2	C1	H1
DRSA-M 112	2.75	7.3	112	190	47	80	96	131
DRSA-M 125	5	9.9	125	220	60	80	98	147.5
DRSA-M 160	7	18.3	160	275	65	89	110	187
DRSA-M 200	10	35.7	200	340	65	101	130	238
DRSA 250	16	62	250	385	75	110	150	281
DRSA 315	22	117	315	470	90	130	180	349.5
DRSA 400	30	201	400	580	110	155	210	440
DRSA 500	40	352	500	700	110	170	240	566
