20T Load Turning Device for Weld Shop

In welding processes, using a welding rotating device to rotate steel structural components to the optimal welding position not only improves welding quality but also ensures operational safety and increases production efficiency. The load turning device integrates lifting, synchronous tilting, and positioning. Through a rigid crossbeam, belt turning mechanism, and precise drive control, it ensures uniform force distribution during the turning process, preventing workpiece slippage and making welding operations safer, more precise, and more efficient.

Core Structure and Components

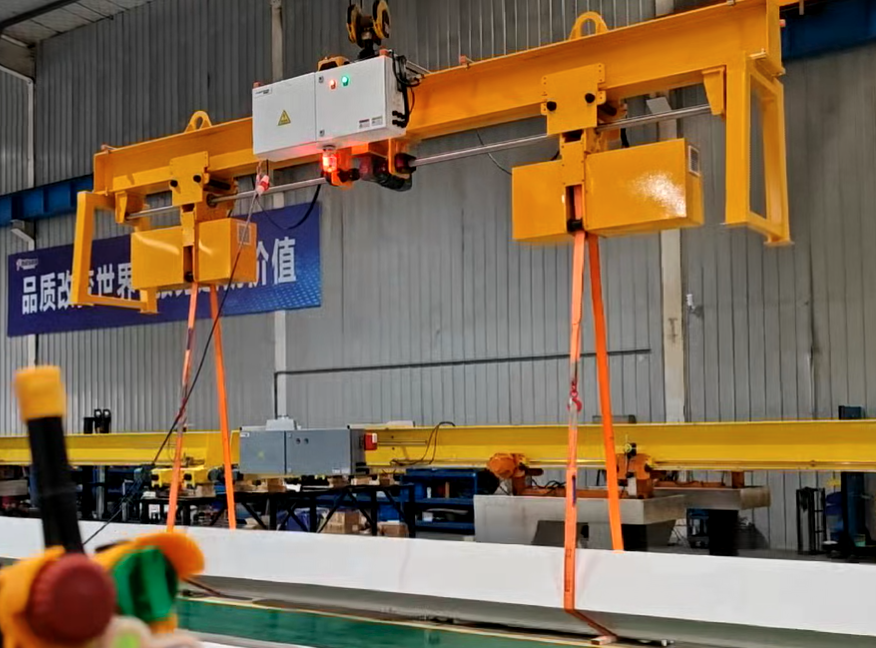

The welding rotating device consists of several key parts, including the main frame and lifting point devices, the turning mechanism and electric drive system, belt-type turning and load-bearing components, and safety protection devices.

Product Highlights of The Load Turning Device

• The main crossbeam and rotating shaft are made of high-quality structural steel, with strength and stiffness checked according to load-bearing capacity and fatigue life, suitable for high-frequency heavy-load operations.

• The crane's suspension system is adjustable to achieve load balance and prevent slippage.

• The turning workpiece can be stopped at any desired position for welding, assembly, or painting.

• The rotating beam can achieve smooth 360-degree rotation. The rotation process is fast and safe, without damaging the load.

• Operation is performed via wireless remote control, ensuring personnel safety.

Common Application Scenarios

• Vehicle chassis and frame structure rotating and welding positioning

• Welded component inspection and angle assembly

• Mold assembly and finishing

• Turning and assembly of wind turbine blades or large mechanical components.

Through scientific selection, standardized operation, and regular maintenance, load turning device will become an essential turning equipment in welding workshops. During selection and use, it is recommended to collaborate with experienced suppliers to ensure the equipment fully meets specific production needs. Our standardized customized solutions can meet your most demanding requirements. Learn more and contact us today for a quote!
