| Mold Load Turning Beam Rotator

The chain type beam rotator is an automated lifting and rotating device designed for turning, flipping and positioning molds, steel structures and large mechanical components. Driven by motorized system, the rotator enables safe and controllable rotation of workpieces from 0° to 360°, greatly reducing manual operation difficulty while improving production efficiency and operational safety.

Why Mold Processing Requires Beam Rotator

Due to the size and weight constraints of injection molds, die-casting molds, stamping molds and large fixtures, traditional turning methods can no longer meet modern production requirements.

In actual production, large molds require:

• Mold assembly and commissioning

• Mold maintenance and servicing

• Welding processing

• Surface treatment

• Component replacement

• Production line station transfer

These processes require turning molds by 90°, 180° or 360°. Conventional lifting methods not only require coordination by multiple operators but also risk collision, tilting or instability, leading to equipment damage and personnel injury. KUNFENG load rotator utilizes synchronized drive technology and mechanized control system to significantly improve the safety and efficiency of mold turning operations.

Working Principle and Main Components of the Mold Beam Rotator

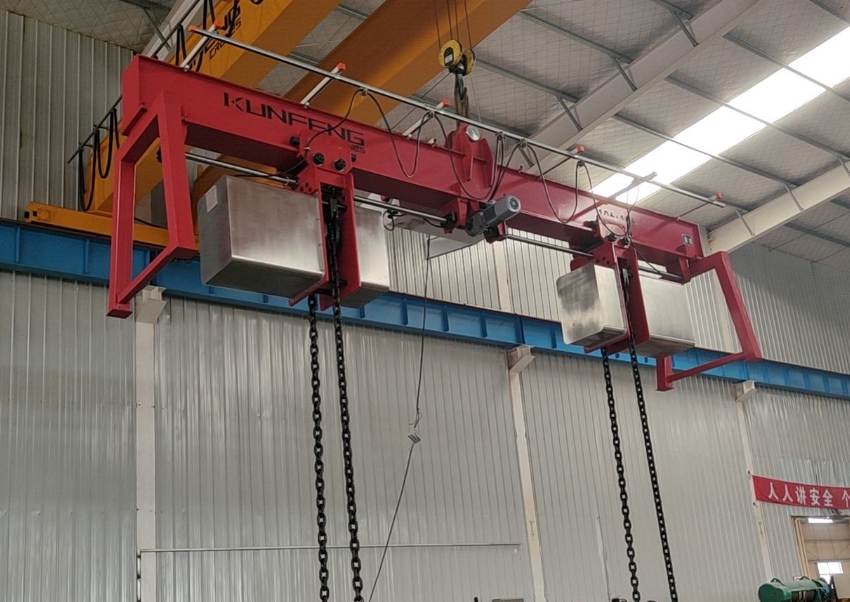

The chain beam rotator mainly uses synchronous drive mechanism to rotate workpieces, achieving smooth turning of molds under controlled conditions. It consists of a load-bearing beam, turning drive system, high strength chains, lifting device, electrical control system and safety protection system.

During operation, the mold is secured to the chain turning mechanism, the motor drives the chains to run synchronously for continuous and stable turning. Once the workpiece reaches the desired position and remains stable, subsequent maintenance, assembly or processing can be performed. The entire turning process is smooth and controllable, effectively avoiding load impact and center-of-gravity deviation.

Performance Advantages of Chain Load Rotator

• The synchronized drive design ensures balanced loading on both sides during rotation, providing safe and stable turning performance.

• Variable frequency control system allows precise and controllable rotation, helping operators quickly complete assembly, inspection and maintenance.

• High precision drive system delivers smooth, shock-free turning and prevents collision, slippage or damage to molds.

• Mechanical operation reduces direct personnel contact with heavy workpieces, lowering the risk of industrial injuries.

• Custom turning solutions available based on mold dimensions, weight and process requirements.

Case Study: Turning Project for Automotive Injection Mold Workshop

A manufacturer of automotive components produces injection molds for bumpers, instrument panels and interior trims, with typical mold weights ranging from 5 to 8 tons. Frequent 180° turning was required during daily maintenance, servicing and assembly. To meet customer needs, KUNFENG provided a customized 10 ton chain type rotator turning device. Featuring bilateral synchronous chain drive, it enables smooth and controllable 0 - 360° rotation, supported by a variable frequency control system and wireless remote control.

After installation, the mold turning time was reduced from approximately 20 minutes to less than 5 minutes per cycle, improving operational efficiency by more than 70%. The entire turning process can now be completed by a single operator, significantly reducing labor requirements and operational risks.

According to customer feedback, the turning device not only improved maintenance and assembly efficiency but also reduced mold collisions and hoisting damage, providing reliable support for stable production line operation.

Key Technical Parameters for Selecting a Load Turner

• Rated load capacity

• Workpiece dimensions

• Turning angle

• Turning speed

• Center of gravity position

• Control method

• Installation space

• Safety configurations

Why Choose KUNFENG Turning Devices

• Extensive industry production experience

• Mature R&D and manufacturing capabilities

• Professional non-standard customization services

• Certified quality management systems

• Comprehensive after-sales service

• Proven successful cases and customer recognition

If you are looking for a high capacity load turning device for your production workshop, please contact our engineering team for professional customized solution and product quotation, providing reliable support for safe and intelligent production.
