| Automobile Frame Load Turnover Device

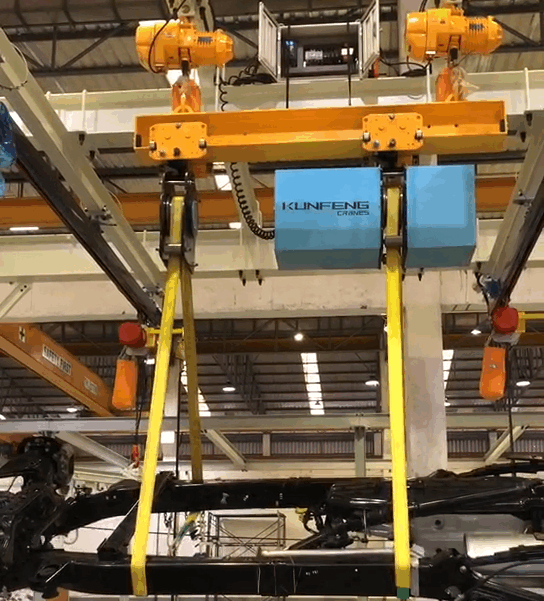

Automobile frame turnover device is a kind of mechanical equipment used to turn the automobile frame in the horizontal and vertical directions. It is mainly composed of frame, transmission hydraulic system, walking system, turning system, workpiece clamping tooling and control system. The lower end of the frame is fixed on the ground or on the track, and the turning system is composed of a slewing support, a turning plate, a driving device, etc., and can realize a 360-degree turning angle. The workpiece clamping tool is composed of oil cylinder, linear guide rail, etc., which can realize the horizontal clamping and positioning of the workpiece. The control system realizes the control of the lifting mechanism and the turning mechanism through the flashlight door button or the remote control, and realizes the lifting and turning of the object.

Specific Technical Parameters

• Load capacity: generally ranging from 1 tons to 10 tons, the load capacity of different models and different manufacturers may vary.

• Flip angle: usually 0-180 degrees, the angle can be adjusted according to needs.

• Turning speed: generally between 40-150 seconds/time, the speed can be adjusted according to the actual situation.

• Workbench area: generally ranging from 2.5 meters to 5 meters and 2 meters, the workbench area of different models and different manufacturers may be different.

• Power source: Generally, it is a three-phase AC power supply with a power ranging from 4 kW to 15 kW. The power of different models and different manufacturers may vary.

• Operation mode: generally hydraulic control, the up and down, left and right movement of the turning machine can be controlled by buttons or remote control.

• Safety device: The turning machine is equipped with a variety of safety devices, such as travel limiter, overload protector, operation button protection cover, etc., to ensure safe operation.

• Application fields: It is suitable for automobile maintenance, painting, refitting and other fields to improve work efficiency and reduce work difficulty.

Advantages of Automobile Frame Turnover Device

• Large turning angle: 360-degree turning can be realized, so that workers can conveniently carry out maintenance, modification and other operations on the upper and lower parts of the frame.

• High stability: Made of high-quality steel, it has good stability and load-bearing performance.

• Easy to operate: use the hydraulic system to control the flip, easy to operate and easy to master.

• Safe and reliable: Equipped with safety protection devices, such as travel limiter, overload protector, etc., to ensure safe and reliable operation.

• Wide range of applications: suitable for flipping the frame of various models, such as cars, commercial vehicles, buses, etc.
