Wheel Block Systems

DRSA wheel block is a multi-functional integrated modular drive system, and for storing and handling stackers and palletizers. Wheel block systems can handle the weight of heavy machinery and ensures to run smoothly on the ground. High elasticity allow it bear greater loads for low-speed and short-distance transport.

DRSA wheel block systems are essential for handling, turning and moving in the intelligent machinery, especially in logistics or three-dimensional warehousing systems.

  • Sectional View

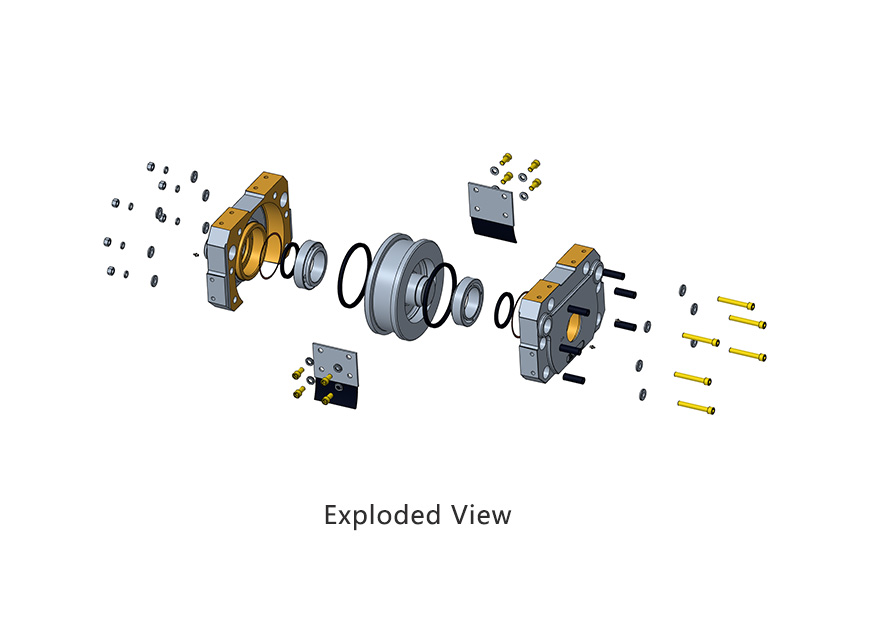

  • Exploded View
  • Installation

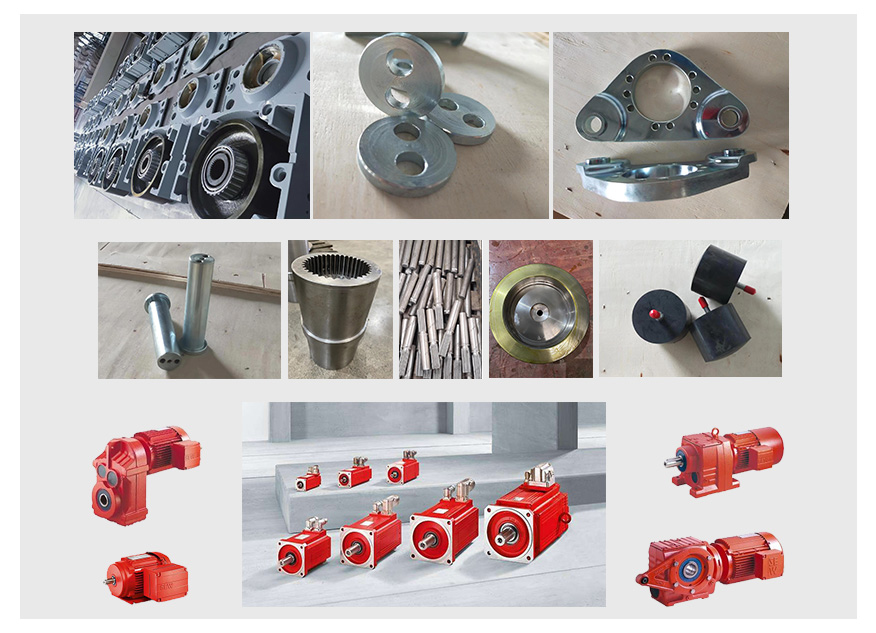

  • Accessories

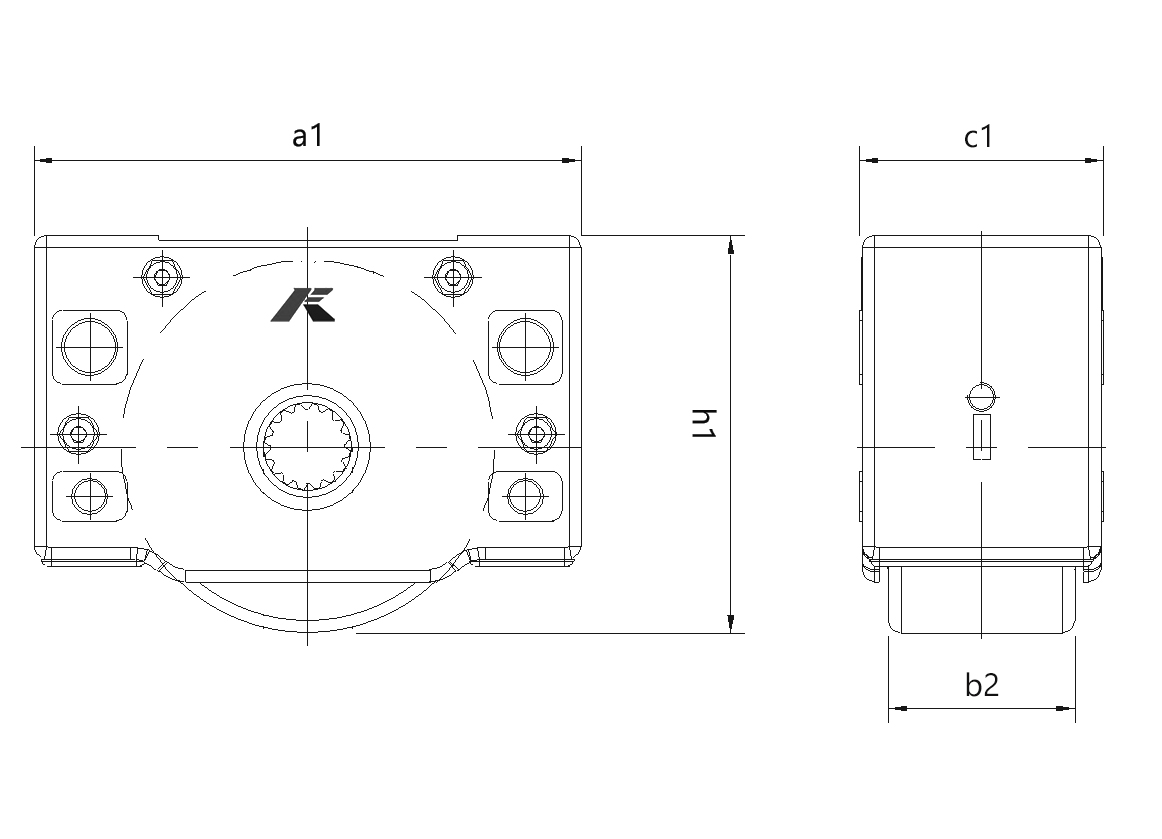

Sectional View
Capacity Weight Diameter A1 B2 C1 H1
(ton) (kg) (mm)
DRSA 112 2.75 7.3 112 190 80 96 131
DRSA 125 5 9.9 125 220 80 98 147.5
DRSA 160 7 18.3 160 275 89 110 187
DRSA 200 10 35.7 200 340 101 130 238
DRSA 250 16 62 250 385 110 150 281
DRSA 315 22 117 315 470 130 180 349.5
DRSA 400 30 201 400 580 155 210 440
DRSA 500 40 352 500 700 170 240 566

DRSA Wheel Block Feature

Easy inspection of flange wear and replacement of wheel.

Maintenance-free anti-friction bearing thanks to lifetime lubrication.

High-quality housing with optimum protection of the travel wheels and bearings.

Flange wear indicator ensure preventive maintenance without risk.

Different configurations for connecting as customer's request.

Rigid design and easy fitting with tight design, position tolerances of the housing and corresponding precise geometry.

Traveling Wheel Block System

DRSA 400 Traveling Wheels
Wide diameters traveling wheels

Wheel block system ranges 112, 125, 160, 200, 250, 315, 400, and 500. A single wheel can carry up to 40 tons.

DRSA 500 wheel block

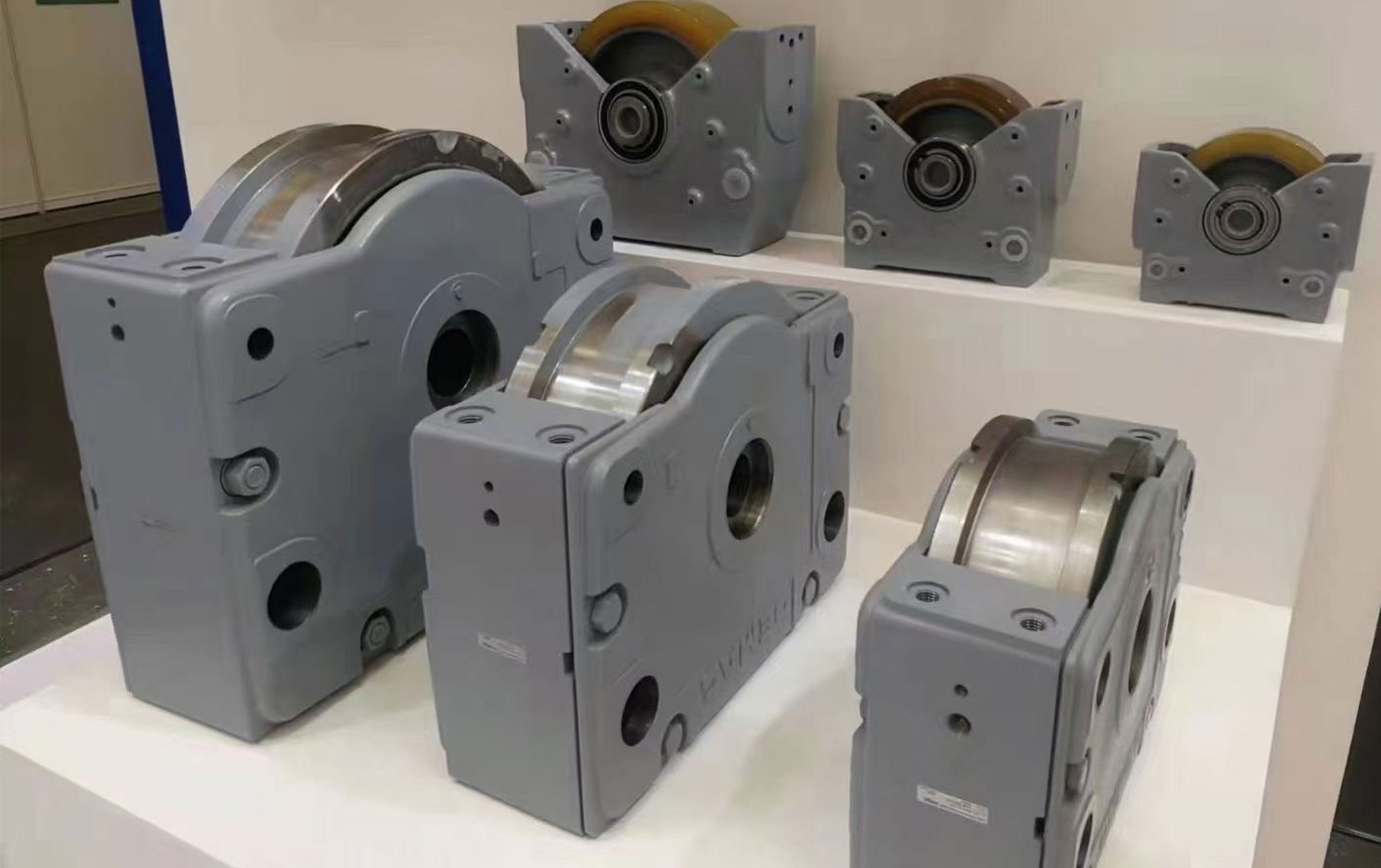

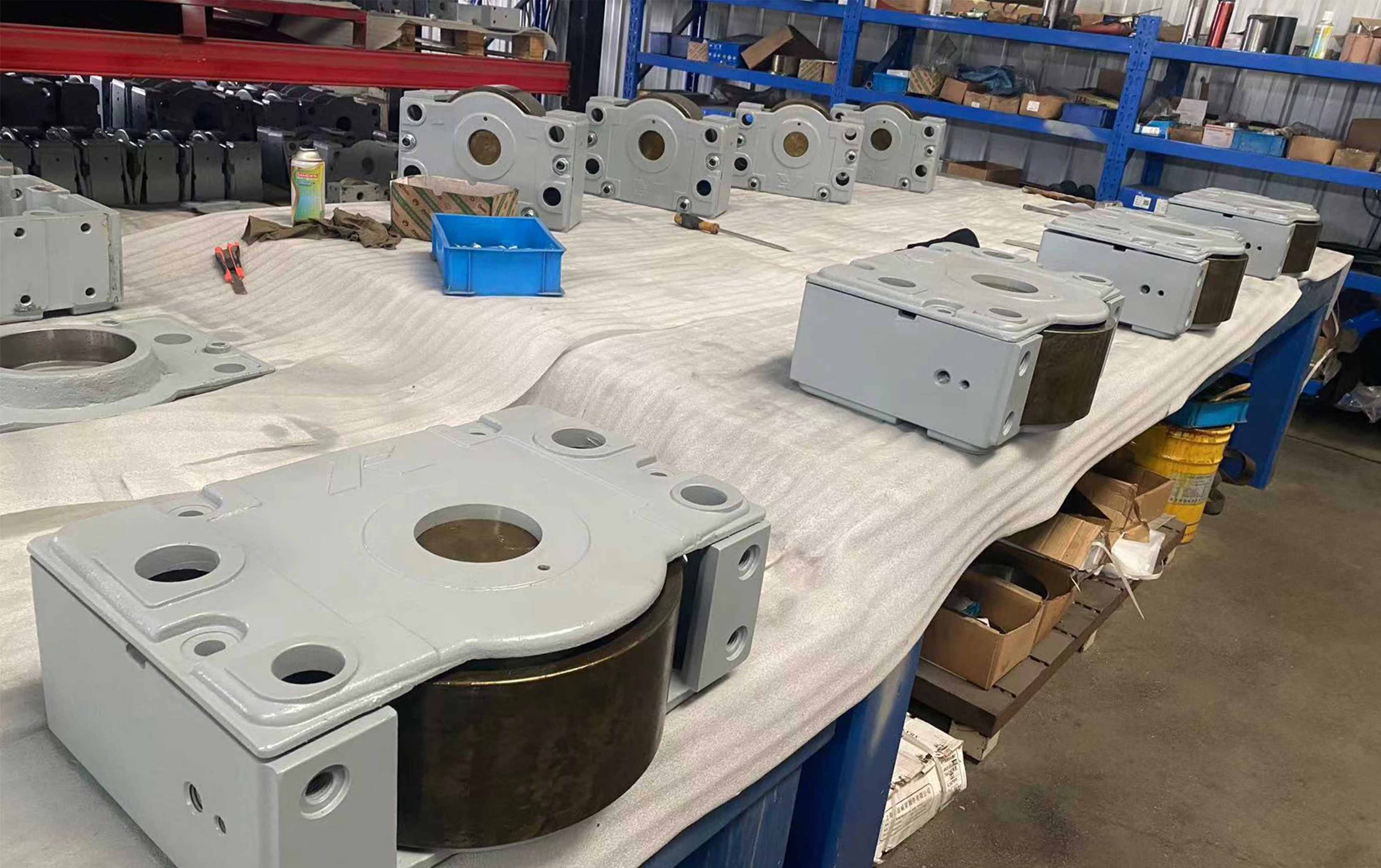

Heavy duty wheel blocks

High-quality housing with optimum protection of the travel wheels and bearings.

Drive Wheel Block
Wheel block systems

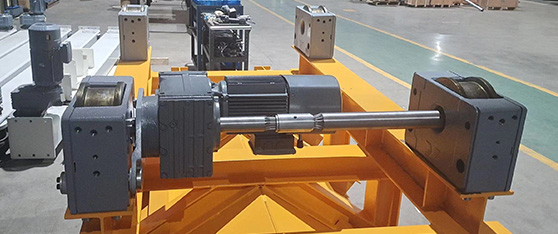

Compatible with shaft mounting gear unit, many travel wheel shapes as standard as well as customer-specific designs.

Drive Wheel Block System
Drive wheel block system

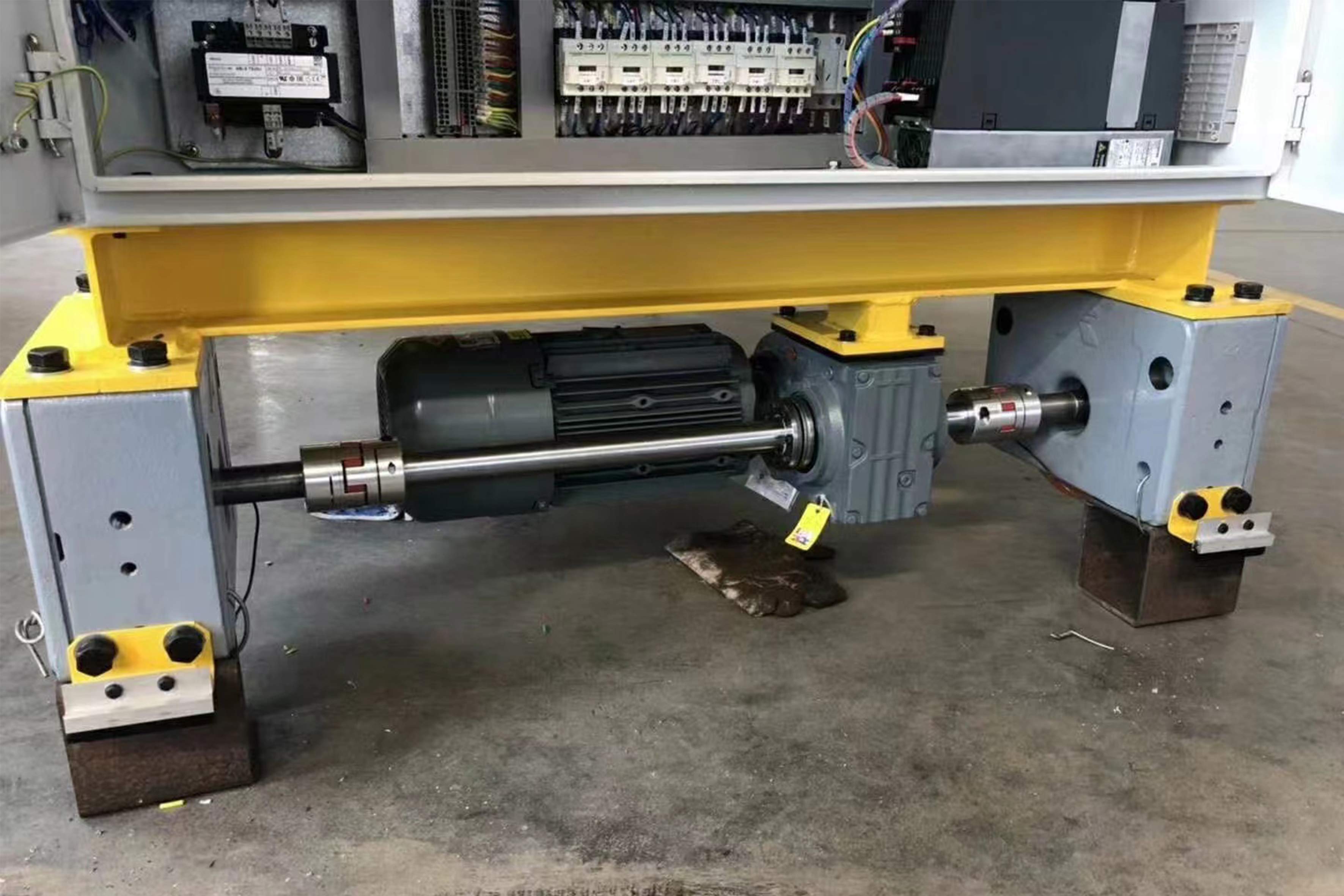

Wheel block systems suitable for crane, transfer carts, lifting platform, conveying system, etc.

Crane Wheel Block Sets

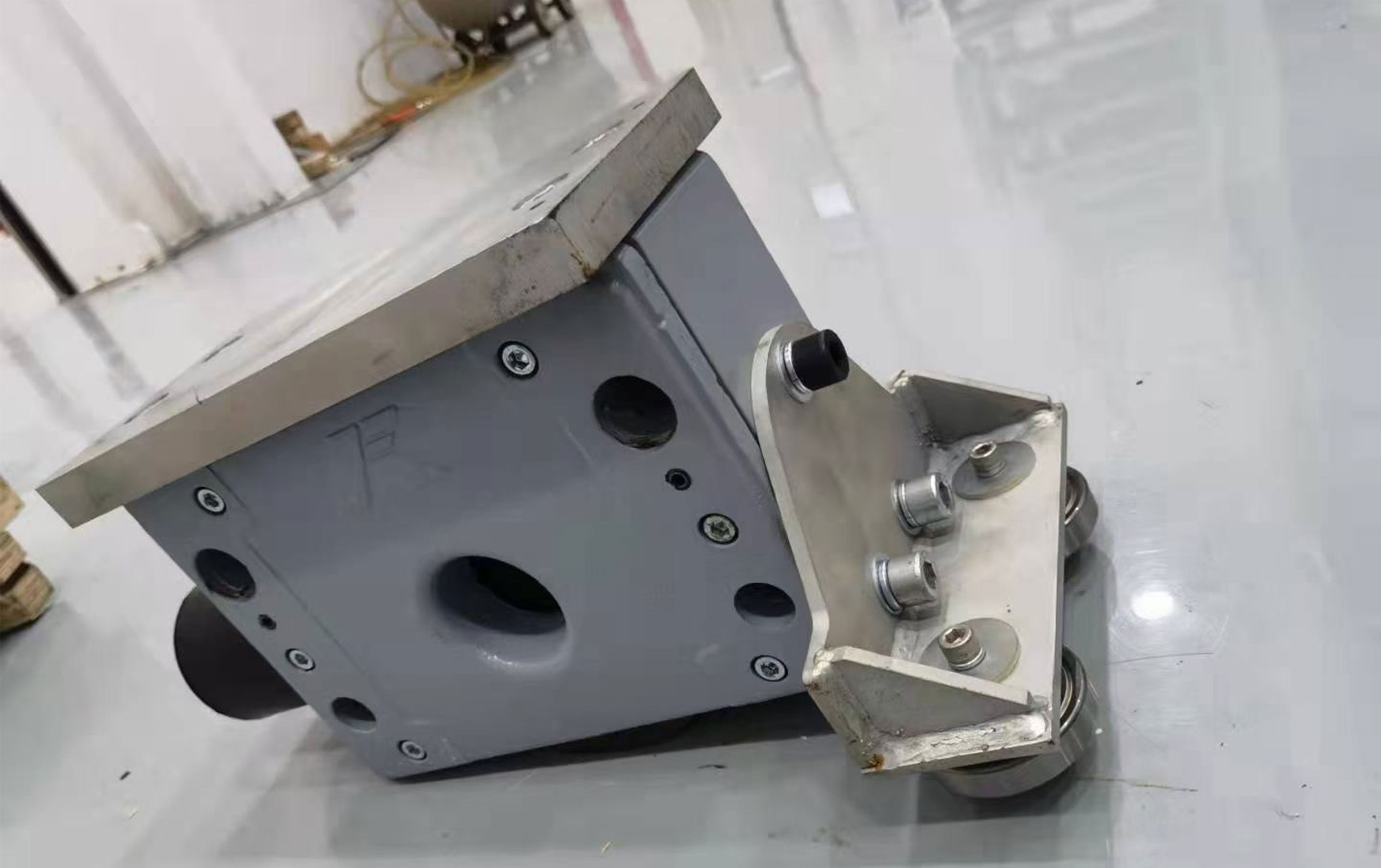

Variant connection wheels

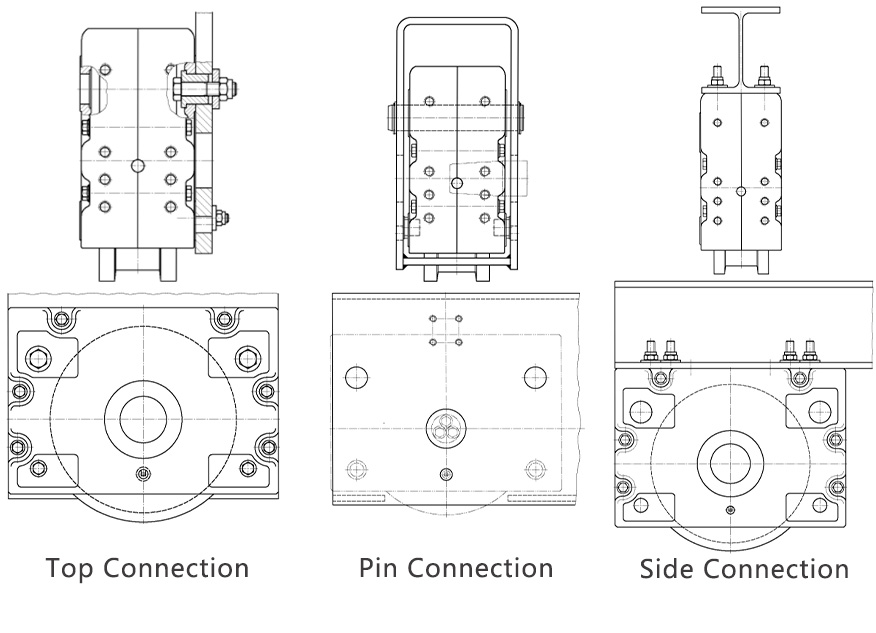

4 variants for connection to customer's superstructure(Top, pin, end and side connection).

Drive Wheel Ranges

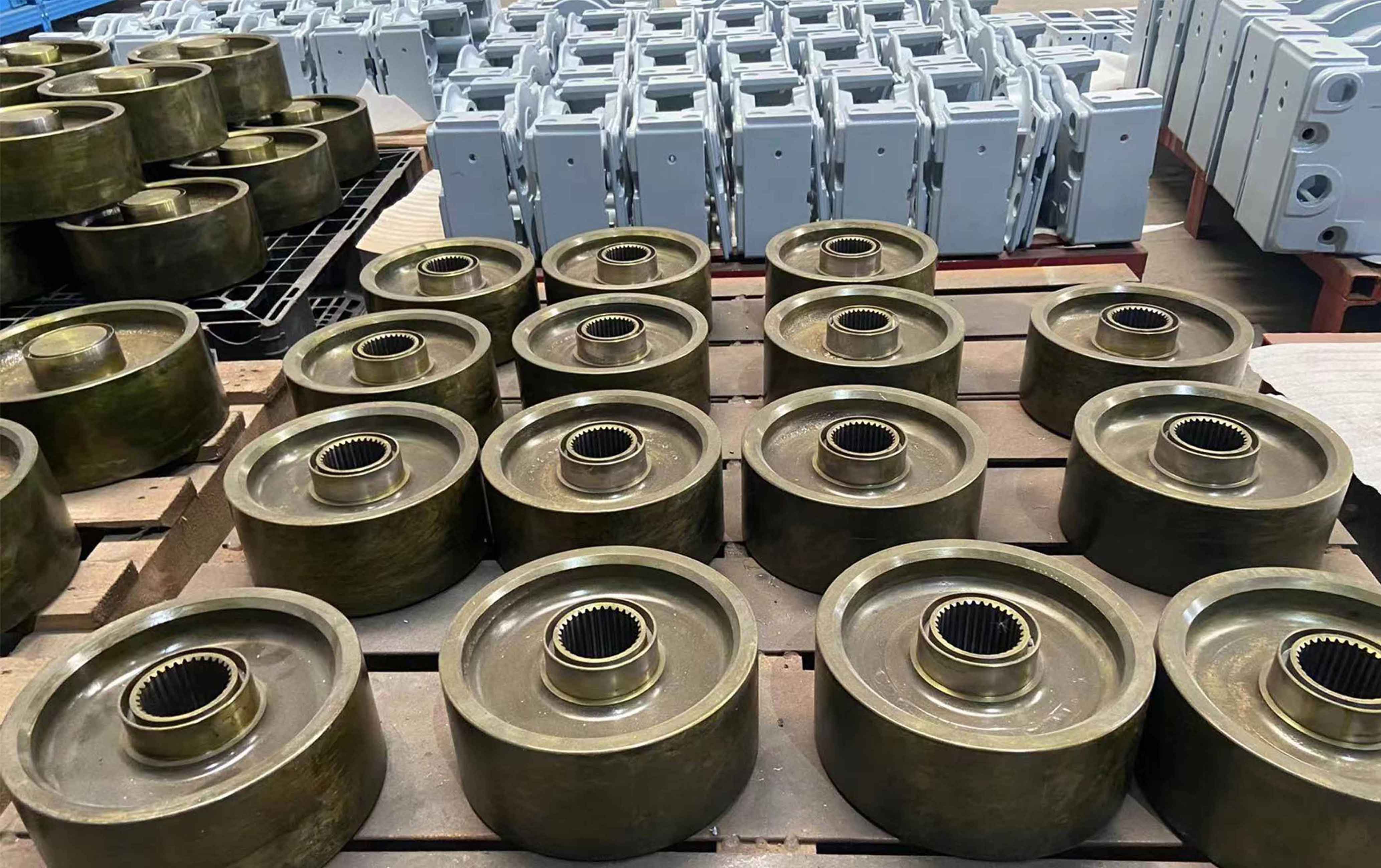

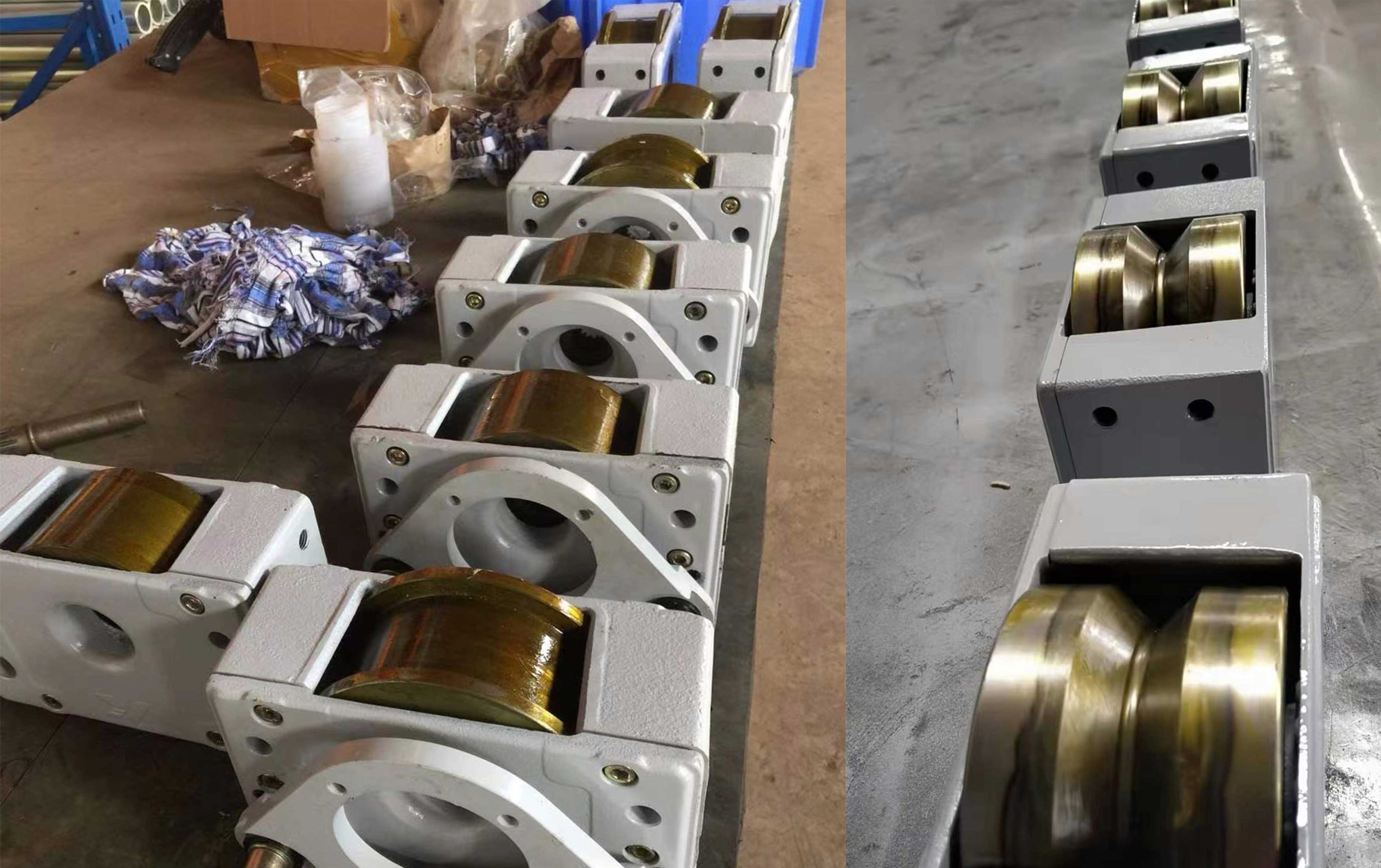

Different travel wheel types

Custom wheel types to fit different rails, wheels with or without flanges.

DRSA Wheel Block Systems Manufacturing Process

01

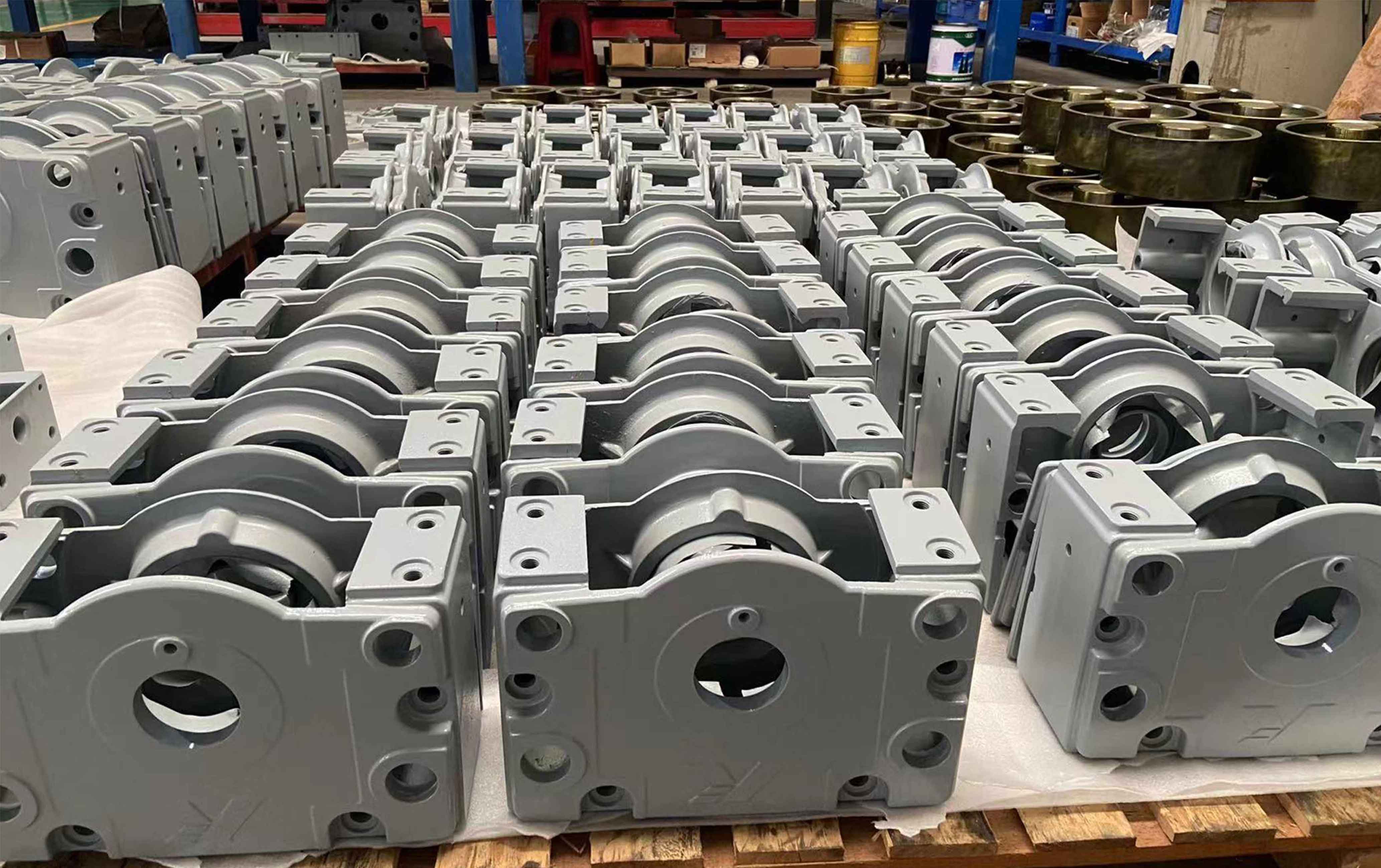

Casting and surface treatment of the wheel block housing
Making molds, casting, milling machining and surface grinding for the housing of wheel blocks casting, then doing anti-rust treatment.
Making molds, casting, milling machining and surface grinding for the housing of wheel blocks casting, then doing anti-rust treatment.
02

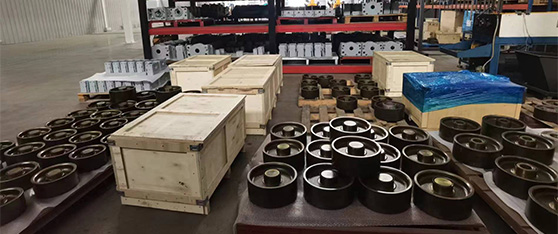

Machining and heat treatment of the wheel
According to the drawings, precision machined to the wheel, then improved the performance of the wheel through heartment, such as normalizing, tempering, annealing and high-frequency.
According to the drawings, precision machined to the wheel, then improved the performance of the wheel through heartment, such as normalizing, tempering, annealing and high-frequency.
03

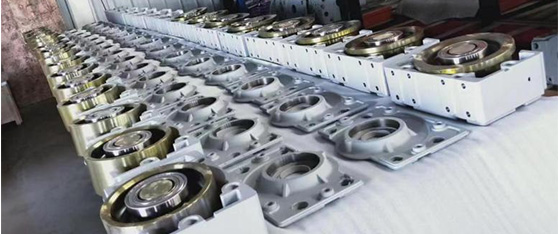

Wheel block assemble
Assemble the wheel, the housing, bearing etc.
Assemble the wheel, the housing, bearing etc.
04
Wheel block systems' assemble and commissioning
Based on the design requirements, such as working condition, load and speed, equiped the motor and reducere, then installation and commissioning.
Based on the design requirements, such as working condition, load and speed, equiped the motor and reducere, then installation and commissioning.
05

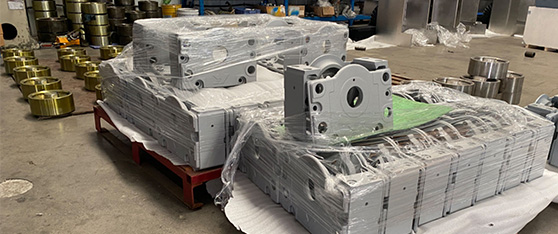

Package and inspection before delivery
Inspect and issue a certificate of conformity, and then package and delivery as required.
Inspect and issue a certificate of conformity, and then package and delivery as required.

DRSA Wheel Block Systems, The Best Solution for The Driving Systems!

Any questions, please let us know.

Contact Us

Applications of Wheel Block System

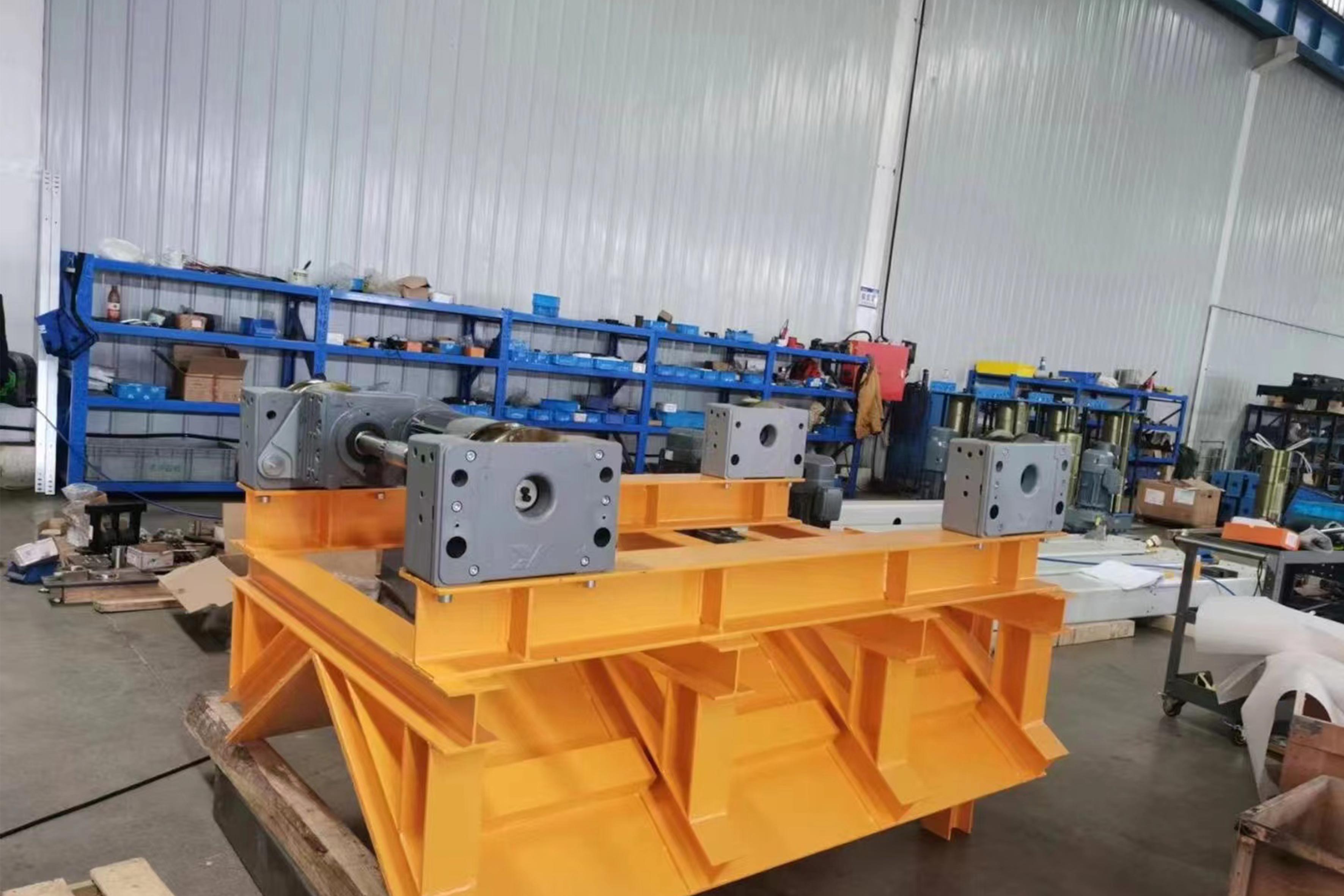

Crane Wheel Block System

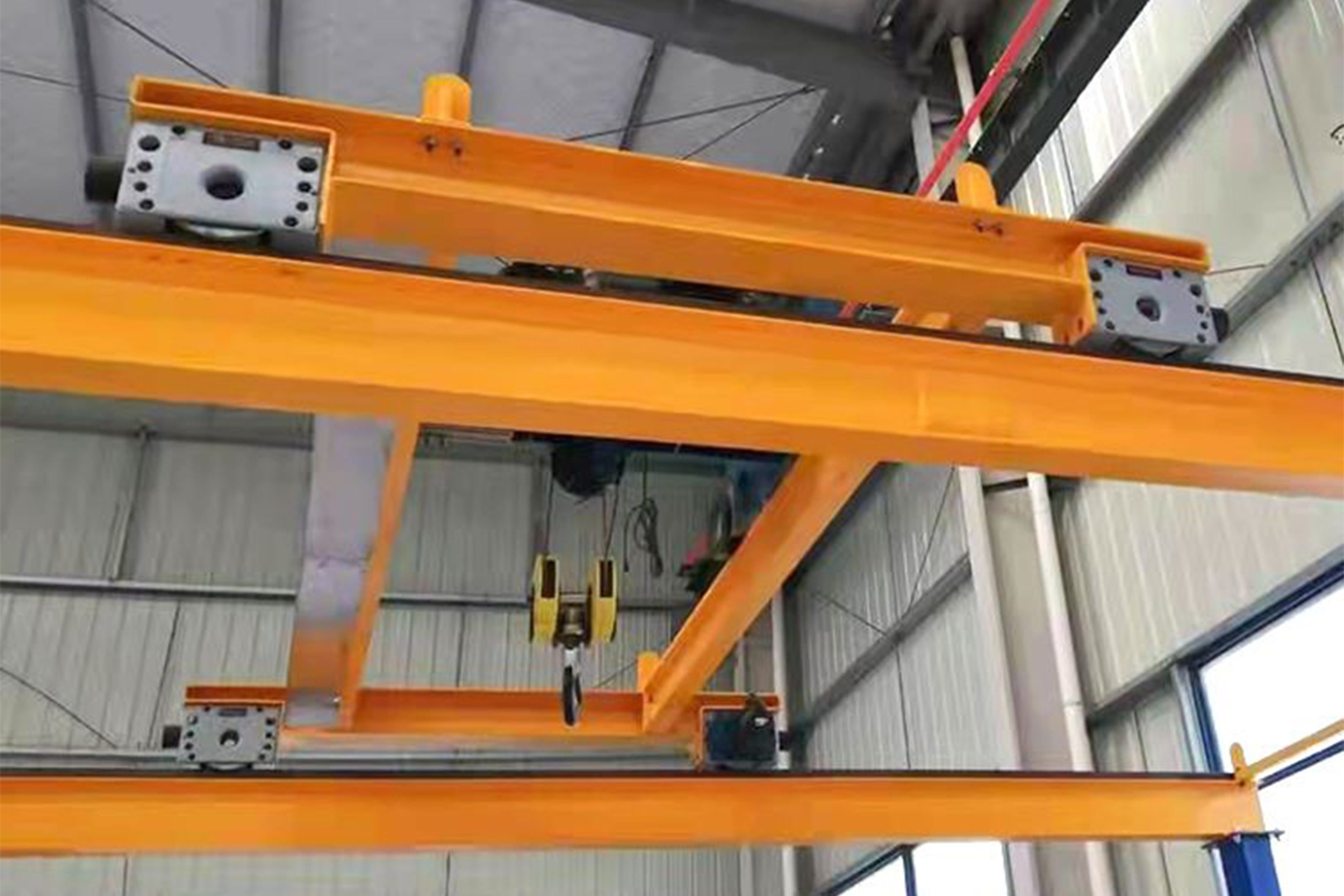

Attached to overhead crane's end beams, allowing for easy movement along the rails.

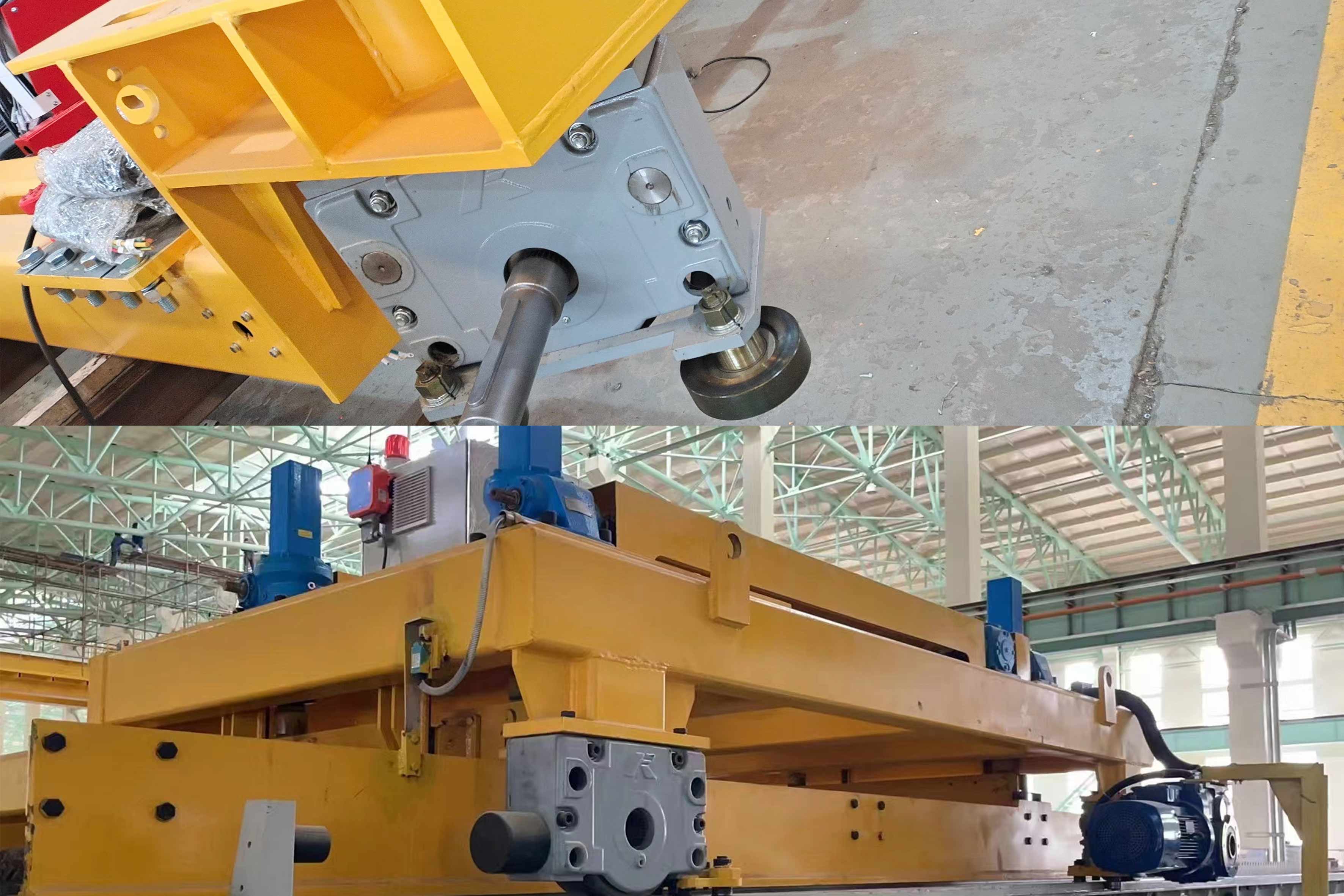

Transfer Carts Wheel Blocks

DRSA wheels mounted to the transfer carts for heavy load traveling.

Conveying System Wheels

The drive wheel and driven wheels are coordinated to safely transfer heavy loads.

Wheels with Hub Spline

Wheel block system is suitable for reliable power transmission and movement.
